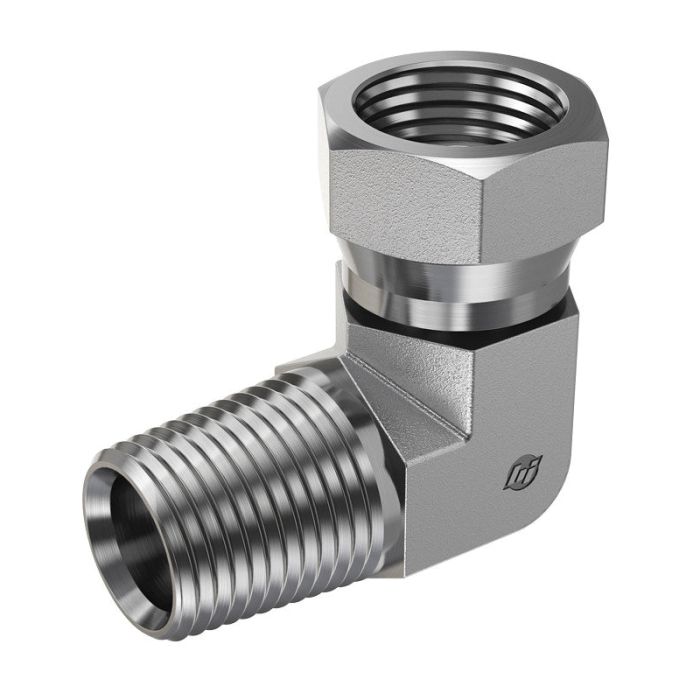

#8 MP X #12 FP SWIVEL 90*

Description & Features

Forged from steel, this 90-degree swivel elbow connects a #8 Male NPTF thread (1/2-14, per SAE J476) to a #12 Female NPSM Swivel thread (3/4-14, per SAE J514), making it well suited for hydraulic line assemblies where angular routing and rotational alignment are required. The forged steel construction provides reliable structural integrity at a maximum dynamic pressure rating of 3,000 PSI.

The #8 MP x #12 FP Swivel 90° is part of Brennan's 1501-Fg series and features a swivel end that aids in assembly by allowing rotation during installation without twisting connected lines. With a hex size of 1.250 in. and centerline lengths of 1.650 in. and 1.300 in., it fits within compact hydraulic circuit layouts. This fitting carries a California Prop 65 warning.

SKU: 1501-08-12-FG

Supplier Part Number (MPN): 1501-08-12-FG

Alternate Part Numbers: 1501-08-12, A2047-12-8S

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
3/4 in
Connection Type
FNPSM Swivel, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
SAE FNPSM Swivel
Cubic Inch Space L x W x H Dimensions
6.039 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.59 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1-1/4
l Dimensions
1.59 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
3000 psi
Series
1501-FG Series
Thread 2 Drill Dimensions
0.61 in
Thread B1 Drill Dimensions
0.531 in
Thread Size
3/4-14 x 1/2-14

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
#2 MP X #4 FP Swivel 90*

1501-02-04-FG

1/8 in

1/4 in

1/4-18 x 1/8-27

11/16 in

02MP-02FP X 90 -FORGED

1501-02-02-FG

1/8 in

1/8 in

1/8-27

0.563 in

#4 MP X #4 FP Swivel 90*

1501-04-04-FG

1/4 in

1/4 in

1/4-18

11/16 in

#4 MP X #6 FP (SWIVEL) 90*

1501-04-06-FG

1/4 in

3/8 in

3/8-18 x 1/4-18

7/8 in

#4 MP X #8 FP (Swivel) 90*

1501-04-08-FG

1/4 in

1/2 in

1/2-14 x 1/4-18

1 x 1 in

#6 MP X #4 FP Swivel 90*

1501-06-04-FG

3/8 in

1/4 in

3/8-18 x 1/4-18

11/16 in

#6 MP X #6 FP Swivel 90*

1501-06-06-FG

3/8 in

3/8 in

3/8-18

7/8 in

#6 MP X #8 FP SWIVEL 90

1501-06-08-FG

3/8 in

1/2 in

1/2-14 x 3/8-18

1 x 1 in

#6 MP X #12 FP Swivel 90*

1501-06-12-FG

3/8 in

3/4 in

3/4-14 x 3/8-18

1-1/4

#8 MP X #4 FP Swivel 90*

1501-08-04-FG

1/2 in

1/4 in

1/2-14 x 1/4-18

11/16 in

#8 MP X #6 FP Swivel 90*

1501-08-06-FG

1/2 in

3/8 in

1/2-14 x 3/8-18

7/8 in

08MP-08FPS 90 ELBOW

1501-08-08-FG

1/2 in

1/2 in

1/2-14

1 x 1 in

#12 MP X #8 FP Swivel 90*

1501-12-08-FG

3/4 in

1/2 in

3/4-14 x 1/2-14

1 x 1 in

#12 MP X #12 FP Swivel 90*

1501-12-12-FG

3/4 in

3/4 in

3/4-14

1-1/4

#16 MP X #8 FP (Swivel) 90*

1501-16-08-FG

1 in

1/2 in

1-11-1/2 x 1/2-14

1 x 1 in

#16 MP X #12 FP Swivel 90*

1501-16-12-FG

1 in

3/4 in

1-11-1/2 x 3/4-14

1-1/4

#16 MP X #16 FP Swivel 90*

1501-16-16-FG

1 in

1 in

1-11-1/2

1-1/2 in

#16 MP X #20 FP (Swivel) 90*

1501-16-20-FG

1 in

1-1/4 in

1-1/4-11-1/2 x 1-11-1/2

1-7/8 in

#20 MP X #16 FP Swivel 90*

1501-20-16-FG

1-1/4 in

1 in

1-1/4-11-1/2 x 1-11-1/2

1-1/2 in

#20 MP X #20 FP Swivel 90*

1501-20-20-FG

1-1/4 in

1-1/4 in

1-1/4-11-1/2

1-7/8 in

#24 MP X #24 FP Swivel 90*

1501-24-24-FG

1-1/2 in

1-1/2 in

1-1/2-11-1/2

2-1/8 in

#32 MP X #32 FP Swivel 90*

1501-32-32-FG

2 in

2 in

2-11-1/2

2-5/8 in

Product Questions & Answers (1)

Question by: Denise M on Oct 3, 2025, 12:28 PM
Reckon this 90 degree fitting will hold up okay for a hydraulic setup pushing 3000 PSI? Just wanna make sure it's stout enough.
Answer by: Customer Support on Oct 4, 2025, 3:07 PM
Forged from steel, this fitting is designed to reliably handle dynamic pressures up to 3,000 PSI.
