#12 MP X #8 FP Swivel 90*

Description & Features

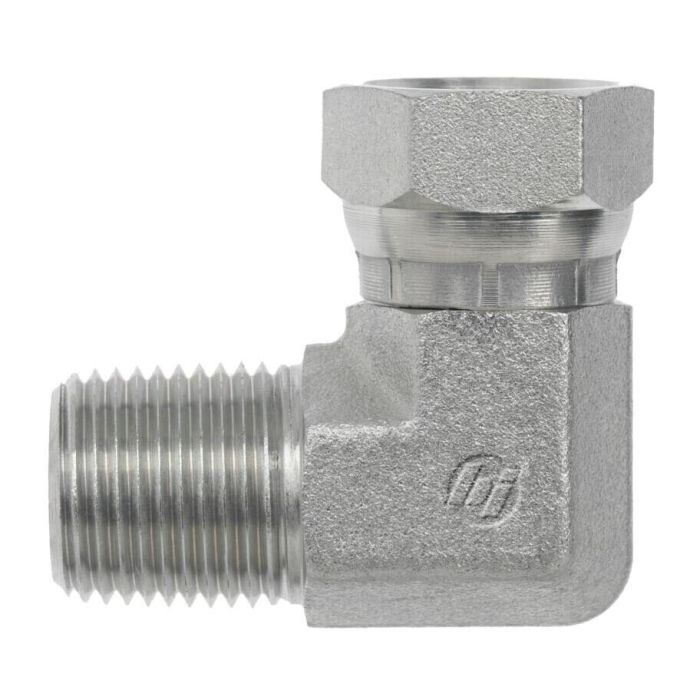

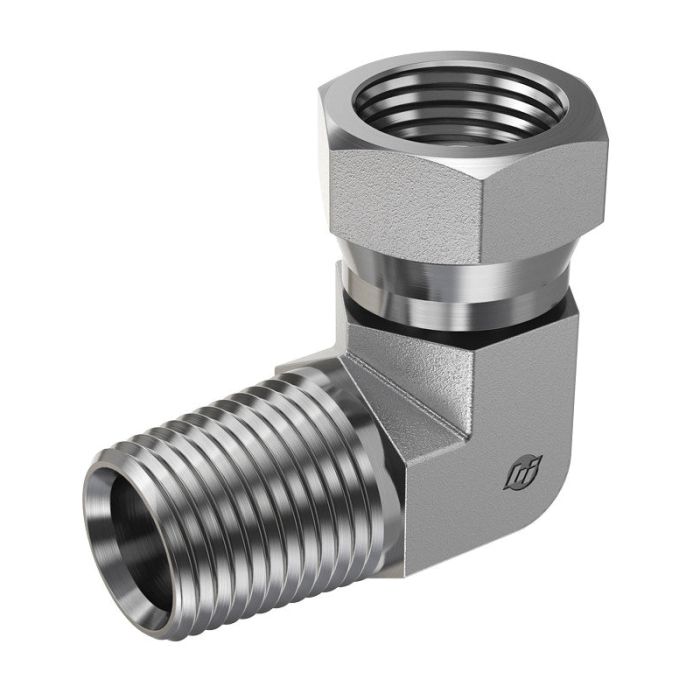

Manufactured from high-grade forged steel the 12MP-08FPS 90 Elbow from Brennan Industries Inc ensures robust performance and durability for industrial applications. Crafted to meet SAE J476 and J514 specifications this component delivers reliability and efficiency under maximum dynamic pressure of up to 5 000 PSI.

Designed for precision this swivel elbow features a 1.610 mm centerline length 1 1.330 mm centerline length 2 and an overall length of 1.590 mm. The male NPTF thread size B1 is 3/4-14 with a 0.719 mm drill while the female NPSM swivel thread size B2 is 1/2-14 with a 0.440 mm drill ensuring a secure and adaptable fit.

The hex size C is 1.000 mm enhancing its compatibility with various fittings and systems. The cubic inch space (L x W x H) covers 4.475 inches indicating compact dimensions for seamless integration in diverse setups.

Supplier Part Number: 1501-12-08-FG

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 1501-12-08-FG

Product Questions & Answers (2)

Question by: Merle B on Oct 27, 2025, 9:23 AM

i’ve got a 3/4-14 male pipe thread on one side and need a 90 with a swivel female on the other. Is that what this fitting is?

Answer by: Customer Support on Oct 29, 2025, 8:01 AM

On the male end it is 3/4-14 MALE NPTF, and the swivel end is 1/2-14 FEMALE NPSM SWIVEL. It is a 90 degree elbow, so it is meant to turn the line while giving you that swivel connection on the female side.

Question by: Judy S on Nov 3, 2025, 9:37 PM

what's the max pressure rating on this swivel elbow, and is it safe for dynamic hydraulic lines?

Answer by: Customer Support on Nov 5, 2025, 8:35 AM

Rated at 5,000 PSI for dynamic pressure, this fitting holds up well in active hydraulic systems where pressure fluctuates under load. It's forged steel construction and meets both SAE J476 and SAE J514 specs, so it's built for real working conditions, not just static setups.
