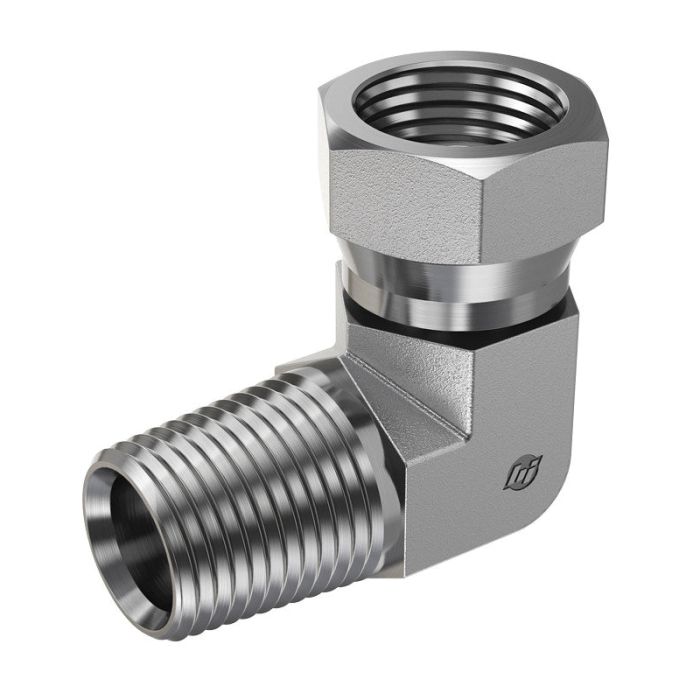

#12 MP X #12 FP Swivel 90*

Ask A Question

Description & Features

Designed for hydraulic and fluid power lines requiring a directional change, the #12 MP X #12 FP Swivel 90° fitting from Brennan Industries connects a #12 male pipe thread to a #12 female pipe thread at a 90-degree angle. The swivel design allows the female end to rotate freely, making it practical for installations where hose or tube assemblies need to be positioned without twisting the line.

Manufactured by Brennan Industries, a recognized supplier of hydraulic fittings and adapters, this fitting is suited for use in mobile equipment, industrial hydraulic circuits, and fluid transfer assemblies where a fixed elbow would otherwise create alignment challenges.

SKU: 1501-12-12-FG

Supplier Part Number (MPN): 1501-12-12-FG

Alternate Part Numbers: 1501-12-12, A2047-12-12S

Specifications

Brand
BRENNAN
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
FNPSM Swivel, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
SAE FNPSM Swivel
Dimension Standards
SAE J476, SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1-1/4
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
3000 psi
Series
1501-FG Series
Thread Size
3/4-14

Product Questions & Answers (1)

Question by: Bonnie L on Dec 6, 2025, 9:38 PM
trying to swap out an elbow on a hydraulic line, is this one #12 male pipe to #12 female pipe and does the female side spin?
Answer by: Customer Support on Dec 8, 2025, 6:03 AM
Built as a 90 degree elbow, it connects a #12 male pipe thread on one end to a #12 female pipe thread on the other. The female end is a swivel, so it can rotate freely to help you line things up without twisting the hose or tube assembly.
