main product photo

NPT MP to FP SS

Ask A Question

Description & Features

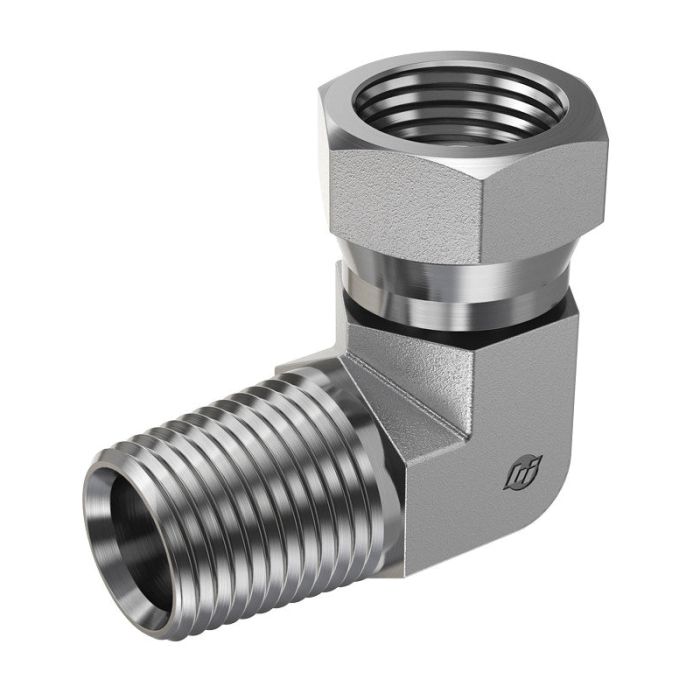

This 90-degree elbow fitting, also known as NPT MP to FP SS, is constructed from forged stainless steel for durability and corrosion resistance. It features a male NPTF thread on one end and a female NPSM swivel thread on the other.

The fitting is part of the 1501-FG series and is designed to withstand a maximum dynamic pressure of 3,000 PSI. The male NPTF thread (B1) measures 3/4-14 according to SAE J476 specifications, while the female NPSM swivel thread (B2) also measures 3/4-14, adhering to SAE J514 standards.

SKU: 1501-12-12-SS

Supplier Part Number (MPN): 1501-12-12-SS

Specifications

Brand
BRENNAN
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
MNPT, NPSM Swivel
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Female SAE NPSM Swivel
Cubic Inch Space L x W x H Dimensions
6.039 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.59 in L
Fitting Type
90 deg Elbow
Hex Size
1-1/4
l Dimensions
1.59 in
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Maximum Operating Pressure
3000 psi
Series
1501-FG Series
Thread 2 Drill Dimensions
0.635 in
Thread B1 Drill Dimensions
0.719 in
Thread Size
3/4-14

Product Questions & Answers (1)

Question by: Shane A on Aug 18, 2025, 3:45 PM
Will this fitting hold up if it's runnin' hydraulic fluid?
Answer by: Customer Support on Aug 20, 2025, 12:04 PM
Designed for durability, this fitting is constructed from forged stainless steel, making it suitable for hydraulic applications. It can withstand a maximum dynamic pressure of 3,000 PSI.
