#16 MP X #8 FP (Swivel) 90*

Description & Features

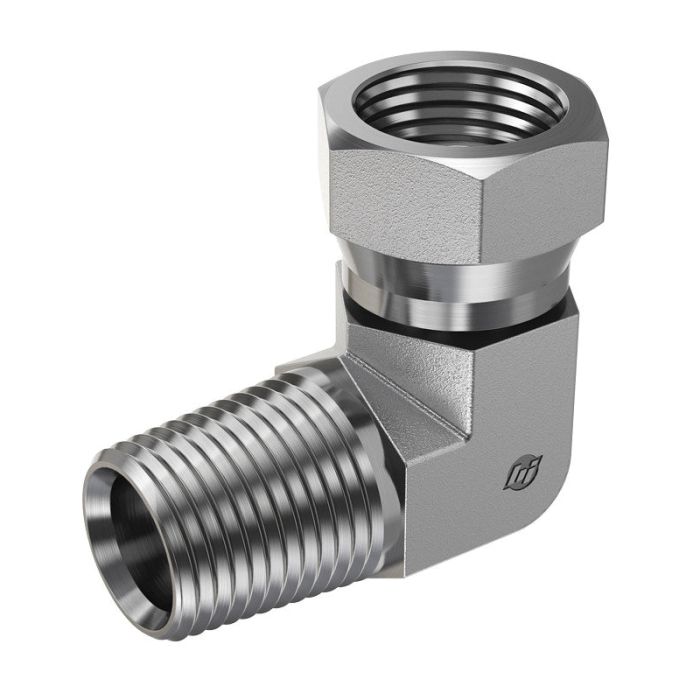

This forged steel 90-degree elbow features a #16 MP x #8 FP (Swivel) 90* configuration, designed for hydraulic applications requiring a robust and reliable connection.

The fitting incorporates a 1-11-1/2 Male NPTF thread on one end, conforming to SAE J476 specifications, and a 1/2-14 Female NPSM Swivel thread on the other, adhering to SAE J514 standards. With a maximum dynamic pressure rating of 3,000 PSI, this elbow is suitable for demanding hydraulic environments.

SKU: 1501-16-08-FG

Supplier Part Number (MPN): 1501-16-08-FG

Alternate Part Numbers: 1501-16-08, A2047-8-16S

Specifications

Brand
BRENNAN
Connection Size 1
1 in
Connection Size 2
1/2 in
Connection Type
FNPSM Swivel, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
SAE FNPSM Swivel
Cubic Inch Space L x W x H Dimensions
5.77 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.97 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1 x 1 in
l Dimensions
1.97 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
3000 psi
Series
1501-FG Series
Thread 2 Drill Dimensions
0.44 in
Thread B1 Drill Dimensions
0.938 in
Thread Size
1-11-1/2 x 1/2-14
