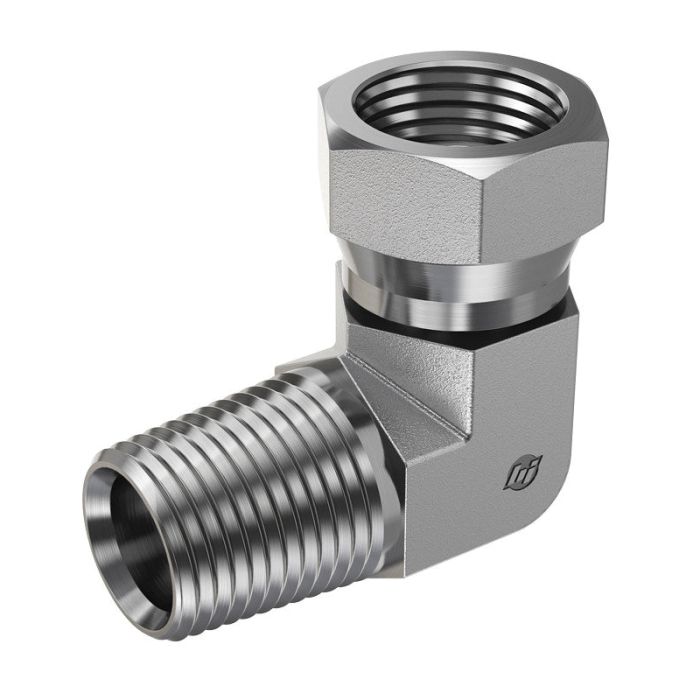

#16 MP X #20 FP (Swivel) 90*

Ask A Question

Description & Features

Constructed from high-quality forged steel, this 90-degree elbow fitting is designed for robust industrial applications. This fitting features a male NPTF thread type on one end and a female NPSM swivel on the other, with thread sizes of 1-11-1/2 and 1-1/4-11-1/2 respectively. Its dynamic pressure capacity reaches up to 2,000 PSI, making it suitable for high-pressure environments.

With an overall length of 2.350 mm and precise centerline lengths, the #16 MP X #20 FP (Swivel) 90* elbow ensures reliable performance and easy integration into existing hydraulic systems. Compliant with SAE J476 and SAE J514 standards, it offers compatibility and reliability across various industrial applications. This fitting is especially advantageous for setups requiring frequent adjustments due to its swivel feature.

SKU: 1501-16-20-FG

Supplier Part Number (MPN): 1501-16-20-FG

Alternate Part Numbers: 1501-16-20, A2047-20-16S, C1DU88

Specifications

Brand
BRENNAN
Connection Size 1
1 in
Connection Size 2
1-1/4 in
Connection Type
FNPSM Swivel, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
SAE FNPSM Swivel
Cubic Inch Space L x W x H Dimensions
18.261 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
2.35 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1-7/8 in
l Dimensions
2.35 in
Material
Steel
Material Construction
AISI C1045 Steel
Series
1501-FG Series
Thread 2 Drill Dimensions
1.01 in
Thread B1 Drill Dimensions
0.938 in
Thread Size
1-1/4-11-1/2 x 1-11-1/2

Product Questions & Answers (2)

Question by: Patty A on Sep 28, 2025, 7:52 AM
got a male NPTF on one end and need it to connect to a 1-1/4 inch female swivel port at a 90 degree angle, this the right fitting for that?
Answer by: Customer Support on Sep 29, 2025, 5:47 PM
That's what this one does. One end is a male NPTF threaded at 1-11-1/2, and the other end is a female NPSM swivel at 1-1/4-11-1/2, all coming together at a 90-degree angle. The swivel end gives you some rotational flexibility during hookup, which makes life a lot easier when you're working in a tight spot or need to reposition the line without fighting the fitting.
Question by: Rick R on Apr 19, 2025, 9:38 AM
trying to swap out an elbow on a press line, is this one male pipe on one side and a swivel female on the other?
Answer by: Customer Support on Apr 20, 2025, 4:46 PM
On the B1 end you get a 1-11-1/2 male NPTF thread, and on the B2 end it has a 1-1/4-11-1/2 female NPSM swivel. That swivel side is meant to make hook-up and alignment easier when you need to clock the elbow during install.
