#20 MP X #16 FP Swivel 90*

Ask A Question

Description & Features

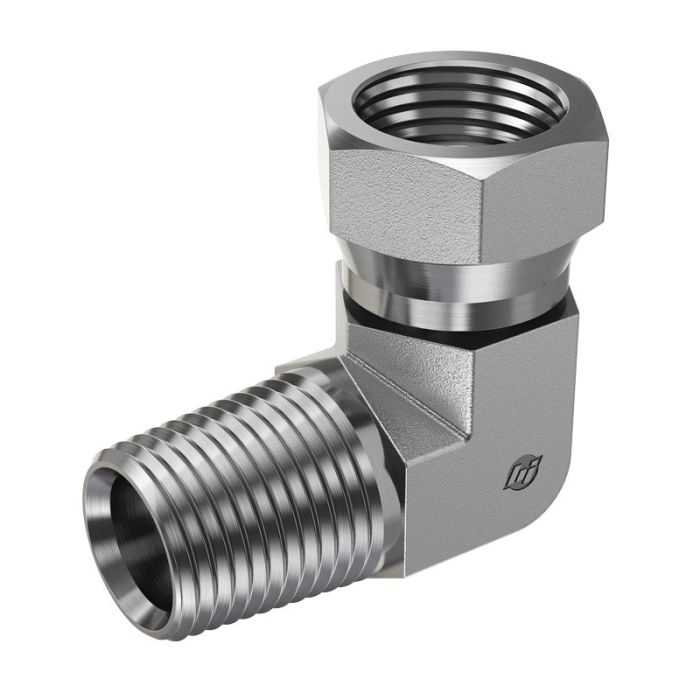

The #20 MP X #16 FP Swivel 90* is designed for high-pressure applications ensuring reliable performance with a maximum dynamic pressure of 2 500 psi. This forged steel product offers exceptional durability and strength.

Featuring a centerline length of 2.050 mm on one side and 1.700 mm on the other this elbow forged fitting is precisely engineered. The compact overall length of 2.380 mm facilitates easy integration into various industrial systems.

The threaded male NPTF end complies with SAE J476 standards with a 1-1/4-11-1/2 thread size and a drill diameter of 1.250 mm. Meanwhile the female NPSM swivel end conforms to SAE J514 specifications with a 1-11-1/2 thread size and a drill diameter of 0.830 mm.

The 1.500 mm hex ensures an optimal fit while the small cubic inch space of 13.439 allows for efficient use of space in demanding environments. Manufactured by Brennan Industries Inc this fitting is suitable for robust industrial applications.

Supplier Part Number: 1501-20-16-FG

Specifications

Brand
BRENNAN
Connection Size 1
1-1/4 in
Connection Size 2
1 in
Connection Type
FNPSM Swivel, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
SAE FNPSM Swivel
Cubic Inch Space L x W x H Dimensions
13.439 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
2.38 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1-1/2 in
l Dimensions
2.38 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
2500 psi
Series
1501-FG Series
Thread 2 Drill Dimensions
0.83 in
Thread B1 Drill Dimensions
1.25 in
Thread Size
1-1/4-11-1/2 x 1-11-1/2

Product Questions & Answers (1)

Question by: Darryl Y on Sep 22, 2025, 6:37 AM
trying to replace an elbow on my line, is this one the kind with a male pipe thread on one end and a female swivel on the other?
Answer by: Customer Support on Sep 23, 2025, 10:11 AM
On the ends, you get a male NPTF thread on one side (SAE J476, 1-1/4-11-1/2) and a female NPSM swivel on the other (SAE J514, 1-11-1/2). It is a 90 degree forged elbow, so it’s meant for turning the line while giving you that swivel connection on the female side.
