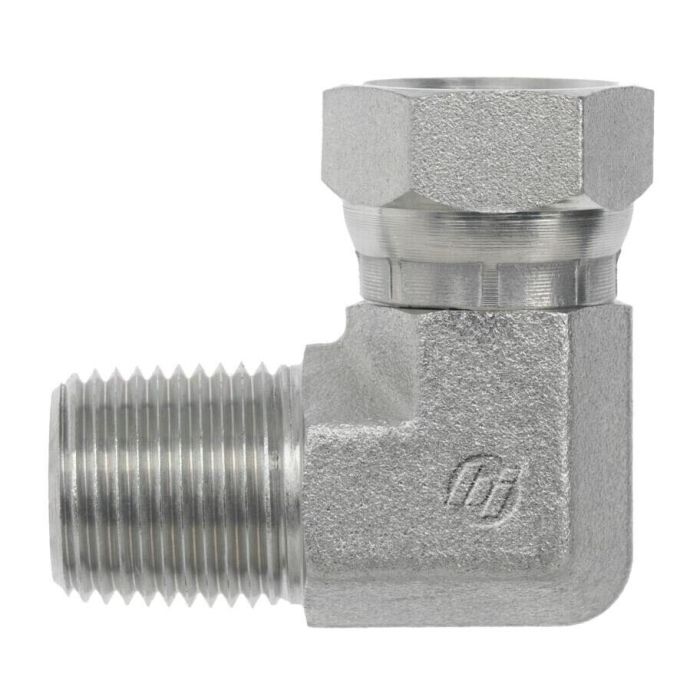

#20 MP X #20 FP Swivel 90*

Description & Features

The forged steel construction of this elbow ensures durability and strength making it suitable for demanding industrial applications. Designed with a 1.875 mm hex size the product offers reliable performance under a maximum dynamic pressure of 2000 psi.

The centerline lengths are 2.150 mm and 1.730 mm providing flexibility in various setups. The elbow features a male NPTF thread type conforming to SAE J476 specifications and a female NPSM swivel thread type that aligns with SAE J514 standards.

With overall dimensions of 2.380 mm in length and occupying a cubic inch space of 18.428 this product is designed to meet space constraints without compromising functionality. The #20 MP X #20 FP Swivel 90* has been precision-engineered to ensure seamless integration and efficient fluid transfer.

MPN: 1501-20-20-FG

Supplier Part Number: 1501-20-20-FG

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 1501-20-20-FG

Product Questions & Answers (1)

Question by: Dean W on Jan 29, 2026, 9:33 AM

trying to swap out an old 90 in my line, is this one a male nptf on one side and a female swivel on the other?

Answer by: Customer Support on Jan 31, 2026, 8:02 AM

On the ends, you have a male NPTF thread on B1 and a female NPSM swivel thread on B2. Both sides are size 1-1/4-11-1/2, with the male side called out to SAE J476 and the swivel side to SAE J514.
