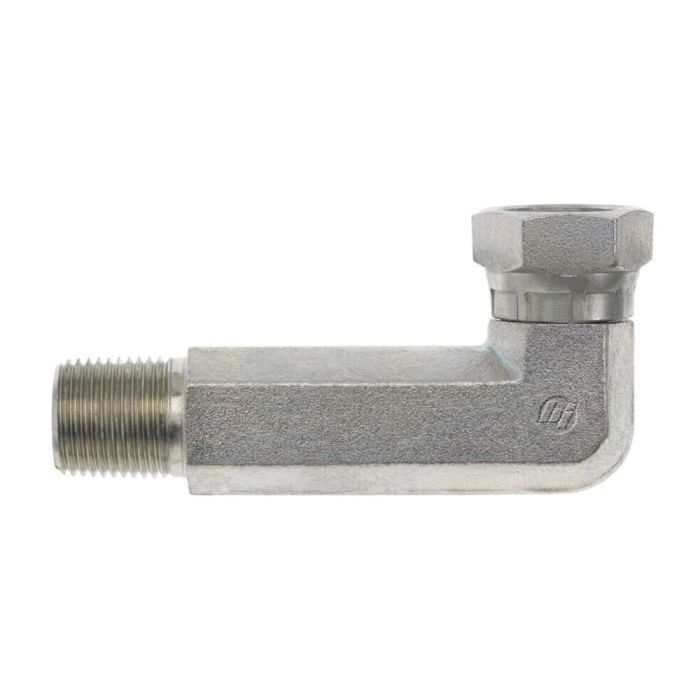

02MP-02FPS 90 ELB LONG FRG (1.64 L DIM)

Ask A Question

Description & Features

This forged steel 90-degree elbow features a long dimension of 1.64 mm. The 02MP-02FPS 90 ELB LONG FRG (1.64 L DIM) has a 1/8-27 male NPTF thread per SAE J476 and a 1/8-27 female NPSM swivel thread per SAE J514.

This fitting is part of the 1501-L-FG series. The B1 thread drill is 0.188 mm and the B2 thread drill is 0.110 mm. It has a C Hex 1 dimension of 0.438 mm, a Centerline Length 1 dimension of 0.700 mm, and a Centerline Length 2 dimension of 0.840 mm.

SKU: 1501-L-02-02-FG

Supplier Part Number (MPN): 1501-L-02-02-FG

Specifications

Brand
BRENNAN
Connection Size 1
1/8 in
Connection Size 2
1/8 in
Connection Type
FNPSM Swivel, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
SAE FNPSM Swivel
Dimension Standards
SAE J476, SAE J514
Dimensions
1.64 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
0.563 in
l Dimensions
1.64 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Series
1501-L-FG Series
Thread 2 Drill Dimensions
0.11 in
Thread B1 Drill Dimensions
0.188 in
Thread Size
1/8-27

Product Questions & Answers (1)

Question by: Daryl P on Jul 16, 2025, 11:02 AM
What size drill bit do I need for the B2 threads on this elbow?
Answer by: Customer Support on Jul 18, 2025, 6:02 AM
For the B2 threads, you'll need a 0.110 mm drill bit.
