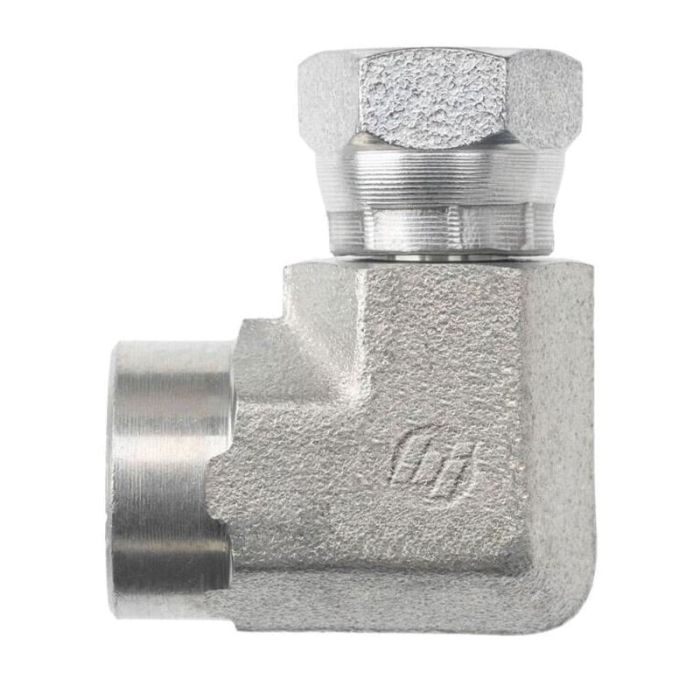

main product photo

1502-04-04-FG

Ask A Question

Description & Features

Designed for tight-space routing in hydraulic circuits, this 90-degree swivel fitting connects two #4 female ports with the ability to rotate freely after installation, simplifying assembly and reducing line stress. Manufactured by Brennan Industries, the 1502-04-04-FG is a #4 FP x #4 FP swivel configuration suited for applications where fixed-angle fittings would create routing or torque challenges.

The swivel function allows the fitting to be oriented during or after assembly without disturbing the connected lines, making it a practical choice for hydraulic assemblies where alignment adjustments are needed post-installation.

SKU: 1502-04-04

Supplier Part Number (MPN): 1502-04-04-FG

Specifications

Brand
BRENNAN
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
FNPSM Swivel, FNPT
Connection Type 1
Female SAE NPTF
Connection Type 2
SAE FNPSM Swivel
Dimension Standards
SAE J476, SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
11/16 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
5000 psi
Series
1502-FG Series
Thread Size
1/4-18

Product Questions & Answers (1)

Question by: Hank A on May 15, 2025, 9:30 PM
Will this fitting hold up okay in an outdoor hydraulic setup, or is it more for indoor use?
Answer by: Customer Support on May 17, 2025, 6:18 AM
This fitting is designed to handle typical hydraulic pressures, but environmental factors like constant UV exposure or corrosive chemicals can affect its longevity.
