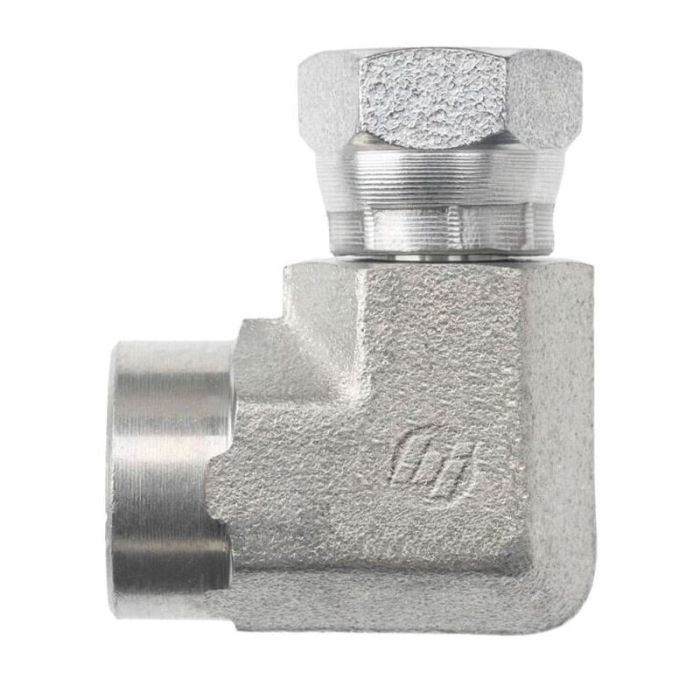

#6 FP X #6 FP Swivel 90*

Description & Features

The 06FP-06FPS 90 Elbow Forged by Brennan Industries Inc is crafted from premium forged steel ensuring durability and high performance in demanding applications. Designed for a 3/8-18 thread size this elbow fitting conforms to SAE J476 and SAE J514 specifications providing reliable connections.

With a maximum dynamic pressure rating of 6 000 psi this elbow fitting is well-suited for high-pressure environments. Its compact dimensions include a Centerline Length 1 of 1.270 mm and Centerline Length 2 of 1.060 mm with an overall length of 1.020 mm. The C Hex measurement stands at 0.875 mm facilitating ease of installation and maintenance.

The female NPTF and female NPSM swivel threads offer compatibility with various industrial settings. The 06FP-06FPS 90 Elbow Forged is a vital component for achieving optimal performance and secure connections in technical systems.

Supplier Part Number: 1502-06-06-FG

California Residents: PROP-65 WARNING

Specifications

Brand
BRENNAN
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
FNPSM Swivel, FNPT
Connection Type 1
Female SAE NPTF
Connection Type 2
SAE FNPSM Swivel
Cubic Inch Space L x W x H Dimensions
2.18 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.02 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
7/8 in
l Dimensions
1.02 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
4500 psi
Series
1502-FG Series
Thread 2 Drill Dimensions
0.32 in
Thread B1 Drill Dimensions
0.406 in
Thread Size
3/8-18

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
#4FP X #2 FP Swivel 90*

1502-04-02-FG

1/4 in

1/8 in

1/4-18 x 1/8-27

0.563 in

1502-04-04-FG

1502-04-04-FG

1/4 in

1/4 in

1/4-18

11/16 in

1502-06-04-FG

1502-06-04-FG

3/8 in

1/4 in

3/8-18 x 1/4-18

11/16 in

1502-08-04-FG

1502-08-04-FG

1/2 in

1/4 in

1/2-14 x 1/4-18

11/16 in

#8 FP X #8 FP SWIVEL 90

1502-08-08-FG

1/2 in

1/2 in

1/2-14

1 x 1 in

ADAPTER

1502-12-08

3/4 in

1/2 in

3/4-14 x 1/2-14

1 x 1 in

#12 FP X #12 FP Swivel 90*

1502-12-12-FG

3/4 in

3/4 in

3/4-14

1-1/4

1502-12-16-FG

1502-12-16-FG

3/4 in

1 in

1-11-1/2 x 3/4-14

1-1/2 in

#16 FP X #12 FP SWIVEL 90*

1502-16-12

1 in

3/4 in

1-11-1/2 x 3/4-14

1-1/4

16FP-16FPS 90 DEG ELBOW

1502-16-16-FG

1 in

1 in

1-11-1/2

1-1/2 in

#20 FP X #16 FP SWIVEL 90*

1502-20-16-FG

1-1/4 in

1 in

1-1/4-11-1/2 x 1-11-1/2

1-1/2 in

1502-20-20-FG

1502-20-20-FG

1-1/4 in

1-1/4 in

1-1/4-11-1/2

1-7/8 in

24FP-24FPS 90 DEG ELBOW

1502-24-24-FG

1-1/2 in

1-1/2 in

1-1/2-11-1/2

2-1/8 in

#32 FP X #32 FP SWIVEL 90*

1502-32-32

2 in

2 in

2-11-1/2

2-5/8 in

Product Questions & Answers (1)

Question by: Floyd W on Jan 1, 2026, 12:26 PM
Hey, so I'm trying to replace a fitting on my backhoe, and this looks about right. Just wanna be double-dog sure this 3/8-18 thread size is what I need?
Answer by: Customer Support on Jan 3, 2026, 7:25 AM
Use-case-first: For hydraulic connections needing that 3/8-18 size, yes, this elbow fitting should work, as it’s made exactly to those SAE J476 and SAE J514 specs.
