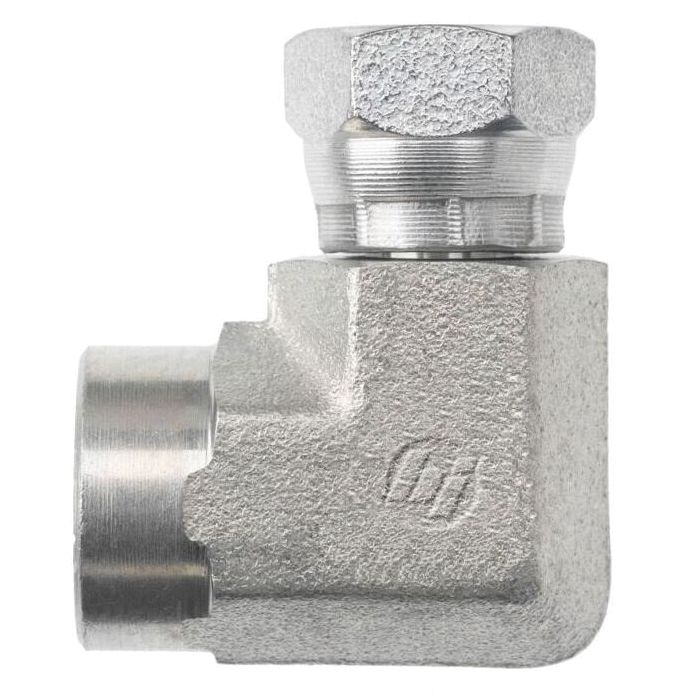

main product photo

#6 FP X #8 FP SWIVEL 90*

Ask A Question

Description & Features

A swivel 90-degree fitting designed for hydraulic line connections requiring angular routing between different port sizes, the #6 FP x #8 FP Swivel 90° from Brennan Industries accommodates a #6 female pipe thread on one end and a #8 female pipe thread on the other. The swivel design allows the fitting to rotate during assembly, reducing the risk of thread cross-loading and making it easier to achieve proper alignment in tight or congested plumbing layouts, particularly useful where fixed fittings would be difficult to torque correctly.

Suited for hydraulic systems where a 90-degree directional change is needed between two female pipe thread connections of differing sizes, this fitting is a practical solution for routing hydraulic lines in mobile equipment, industrial machinery, and fluid power assemblies.

SKU: 1502-06-08

Supplier Part Number (MPN): 1502-06-08-FG

Alternate Part Numbers: 2048-8-6S, A2048-8-6S, C1DU96

Specifications

Connection Size 1
3/8 in
Connection Size 2
1/2 in
Connection Type
FNPSM Swivel, FNPT
Connection Type 1
Female SAE NPTF
Connection Type 2
SAE FNPSM Swivel
Dimension Standards
SAE J476, SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1 x 1 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
3000 psi
Operating Temperature
-65 to 500 deg F
Series
1502-FG Series
Thread Size
1/2-14 x 3/8-18

Product Questions & Answers (1)

Question by: Chad B on Dec 13, 2025, 2:40 PM
got a tight spot on a hydraulic line. is this the kind of 90 that’ll let me clock it where i need it without fighting the threads
Answer by: Customer Support on Dec 15, 2025, 12:53 PM
With the swivel built in, the fitting can rotate during assembly so you can line up the 90-degree turn without putting side load on the pipe threads. That helps in cramped hydraulic connections where a fixed 90 is hard to tighten and still end up pointed the right direction.
