#8 FP X #6 FP SWIVEL 90*

Ask A Question

Description & Features

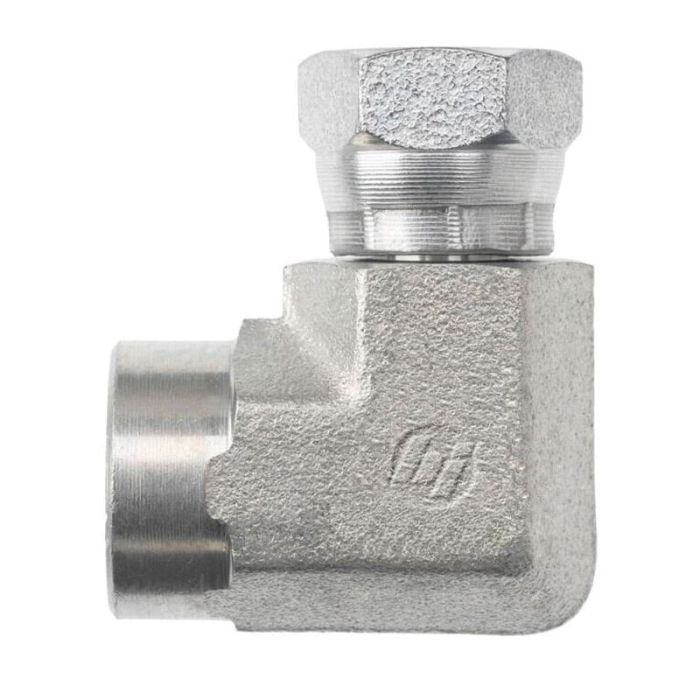

This #8 FP X #6 FP SWIVEL 90* fitting, manufactured by Brennan Industries, facilitates a 90-degree connection between different sized fluid power components.

This fitting is identified by Supplier Part Number 1502-08-06-FG.

SKU: 1502-08-06

Supplier Part Number (MPN): 1502-08-06-FG

Alternate Part Numbers: A2048-6-8S, C1DU97

Specifications

Connection Size 1
1/2 in
Connection Size 2
3/8 in
Connection Type
FNPSM Swivel, FNPT
Connection Type 1
Female SAE NPTF
Connection Type 2
SAE FNPSM Swivel
Dimension Standards
SAE J476, SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
7/8 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
3000 psi
Operating Temperature
-65 to 500 deg F
Series
1502-FG Series
Thread Size
1/2-14 x 3/8-18

Product Questions & Answers (2)

Question by: Hugh J on May 22, 2025, 2:32 PM
If I'm hooking up a #8 fitting to a #6 fitting, would this 90 degree adapter be the right piece?
Answer by: Customer Support on May 24, 2025, 7:46 AM
This 90-degree swivel fitting is specifically designed to connect a #8 female pipe thread to a #6 female pipe thread. It's a direct fit for that purpose.
Question by: Scott W on Sep 4, 2025, 10:11 AM
got a tight spot on a hydraulic line, what’s this #8 FP x #6 FP swivel 90 actually do for me?
Answer by: Customer Support on Sep 6, 2025, 6:48 AM
In a nutshell, it gives you a 90 degree elbow while also stepping between two different fluid power sizes, #8 on one end and #6 on the other. The swivel helps you clock the angle where you need it without fighting the hose or tube.
