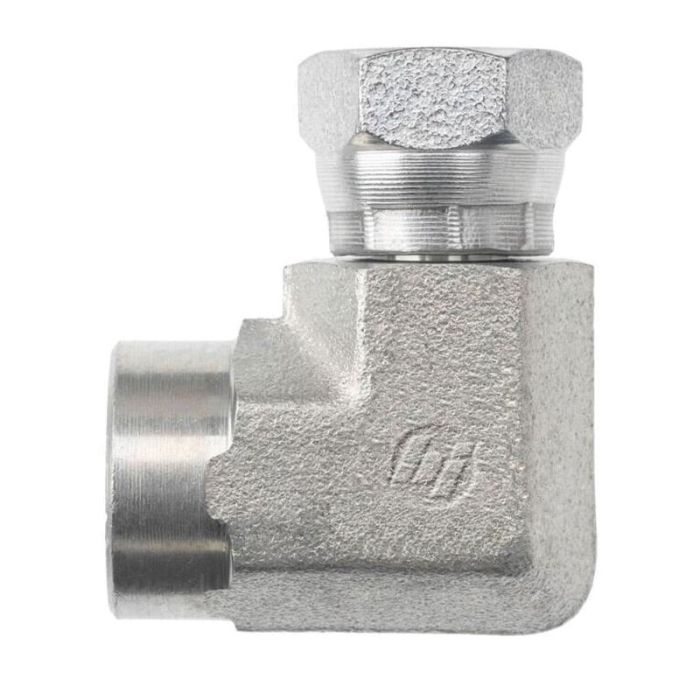

main product photo

#8 FP X #8 FP SWIVEL 90

Ask A Question

Description & Features

This forged steel 90-degree elbow, part number 1502-08-08-FG, features a female NPTF thread and a female NPSM swivel thread. It is part of the 1502-FG series from Brennan.

The 1502-08-08-FG elbow is designed for a maximum dynamic pressure of 5,000 PSI. The thread specifications are SAE J476 for the NPTF thread and SAE J514 for the NPSM swivel thread. The B1 thread drill size is 0.531 inches, and the B2 thread drill size is 0.440 inches, both sized at 1/2-14.

SKU: 1502-08-08-FG

Alternate Part Numbers: 1502-08-08, A2048-8-8S

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
FNPSM Swivel, FNPT
Connection Type 1
Female SAE NPTF
Connection Type 2
SAE FNPSM Swivel
Cubic Inch Space L x W x H Dimensions
3.77 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.23 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1 x 1 in
l Dimensions
1.23 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
3000 psi
Series
1502-FG Series
Thread 2 Drill Dimensions
0.44 in
Thread B1 Drill Dimensions
0.531 in
Thread Size
1/2-14

Product Questions & Answers (1)

Question by: Billy G on Nov 4, 2025, 6:19 PM
Will this fitting hold up to a regular 5000 PSI?
Answer by: Customer Support on Nov 6, 2025, 6:18 AM
This 90-degree elbow is designed to handle a maximum dynamic pressure of 5,000 PSI, so it should work for your application.
