ADAPTER

Description & Features

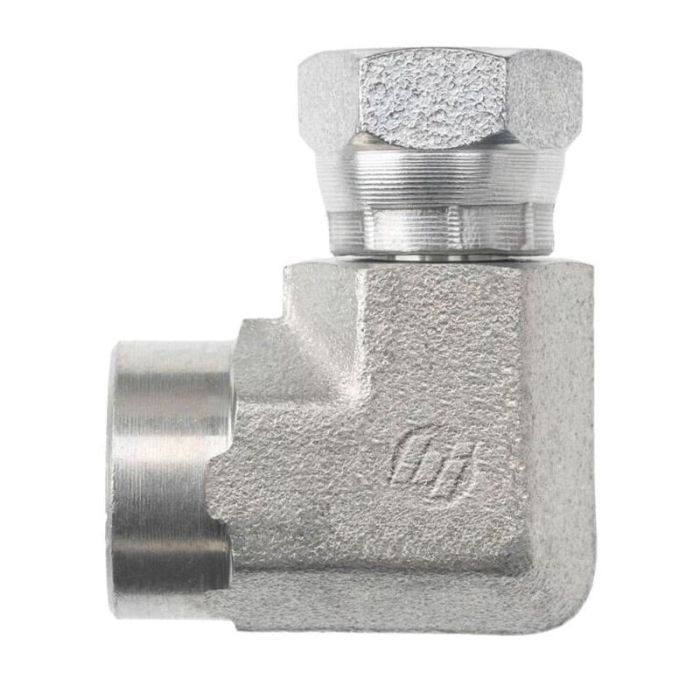

This Tompkins Industries adapter features a #12 FP (rigid) connection on one end and a #8 FP (swivel) connection on the other, oriented at a 90-degree angle.

This adapter, also known under supplier part number 1502-12-08-FG, is suitable for various hydraulic applications.

SKU: 1502-12-08

Supplier Part Number (MPN): 1502-12-08-FG

Alternate Part Numbers: A2048-8-12S, C1DU98, MI-00316047, MINO-00028F64122

Specifications

Brand
BRENNAN
Connection Size 1
3/4 in
Connection Size 2
1/2 in
Connection Type
FNPSM Swivel, FNPT
Connection Type 1
Female SAE NPTF
Connection Type 2
SAE FNPSM Swivel
Dimension Standards
SAE J476, SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1 x 1 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
3000 psi
Series
1502-FG Series
Thread Size
3/4-14 x 1/2-14

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
#4FP X #2 FP Swivel 90*

1502-04-02-FG

1/4 in

1/8 in

1/4-18 x 1/8-27

0.563 in

1502-04-04-FG

1502-04-04-FG

1/4 in

1/4 in

1/4-18

11/16 in

1502-06-04-FG

1502-06-04-FG

3/8 in

1/4 in

3/8-18 x 1/4-18

11/16 in

#6 FP X #6 FP Swivel 90*

1502-06-06-FG

3/8 in

3/8 in

3/8-18

7/8 in

1502-08-04-FG

1502-08-04-FG

1/2 in

1/4 in

1/2-14 x 1/4-18

11/16 in

#8 FP X #8 FP SWIVEL 90

1502-08-08-FG

1/2 in

1/2 in

1/2-14

1 x 1 in

#12 FP X #12 FP Swivel 90*

1502-12-12-FG

3/4 in

3/4 in

3/4-14

1-1/4

1502-12-16-FG

1502-12-16-FG

3/4 in

1 in

1-11-1/2 x 3/4-14

1-1/2 in

#16 FP X #12 FP SWIVEL 90*

1502-16-12

1 in

3/4 in

1-11-1/2 x 3/4-14

1-1/4

16FP-16FPS 90 DEG ELBOW

1502-16-16-FG

1 in

1 in

1-11-1/2

1-1/2 in

#20 FP X #16 FP SWIVEL 90*

1502-20-16-FG

1-1/4 in

1 in

1-1/4-11-1/2 x 1-11-1/2

1-1/2 in

1502-20-20-FG

1502-20-20-FG

1-1/4 in

1-1/4 in

1-1/4-11-1/2

1-7/8 in

24FP-24FPS 90 DEG ELBOW

1502-24-24-FG

1-1/2 in

1-1/2 in

1-1/2-11-1/2

2-1/8 in

#32 FP X #32 FP SWIVEL 90*

1502-32-32

2 in

2 in

2-11-1/2

2-5/8 in

Product Questions & Answers (1)

Question by: Lance T on May 28, 2025, 12:45 PM
Will this fit a standard #8 female pipe thread?
Answer by: Customer Support on May 30, 2025, 6:46 AM
Designed as a #12 FP (Rigid) x #8 FP (Swivel) 90 adapter, this is intended to connect those specific sizes. Make sure your female pipe thread matches the #8 FP standard for a proper fit.
