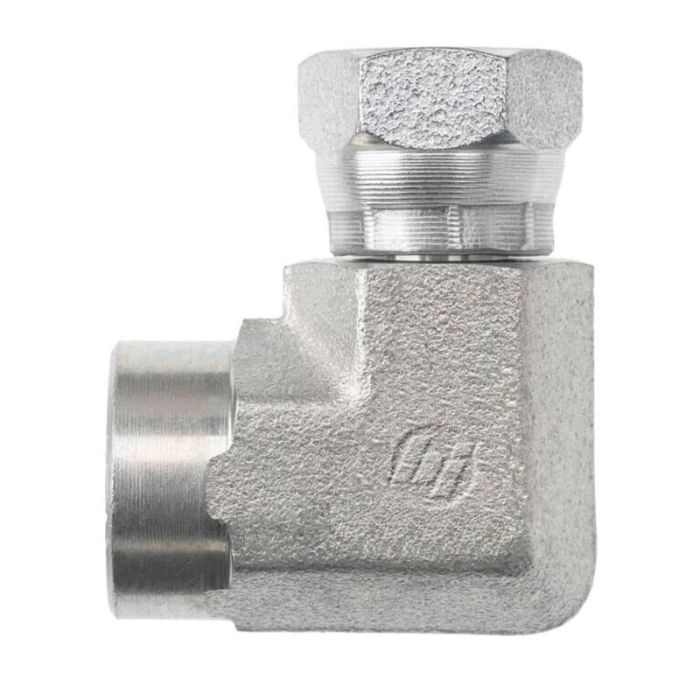

main product photo

#12 FP X #12 FP Swivel 90*

Ask A Question

Description & Features

Designed for hydraulic lines requiring a direction change without sacrificing swivel flexibility, the #12 FP x #12 FP Swivel 90° fitting from Brennan Industries connects two #12 female pipe ports at a 90-degree angle. The swivel design allows rotational adjustment after installation, making it well-suited for applications where hose or line orientation needs to be set during assembly.

This fitting is a practical choice for mobile hydraulic equipment, industrial machinery, and fluid power circuits where space constraints call for a right-angle connection between fixed and moving components. Brennan Industries manufactures this fitting to consistent dimensional and performance standards, making it a reliable option for maintenance and OEM replacement applications.

SKU: 1502-12-12-FG

Supplier Part Number (MPN): 1502-12-12-FG

Alternate Part Numbers: 1502-12-12, A2048-12-12S

Specifications

Brand
BRENNAN
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
FNPSM Swivel, FNPT
Connection Type 1
Female SAE NPTF
Connection Type 2
SAE FNPSM Swivel
Dimension Standards
SAE J476, SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1-1/4
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
3000 psi
Series
1502-FG Series
Thread Size
3/4-14

Product Questions & Answers (2)

Question by: Pete F on Jul 17, 2025, 5:11 PM
If I got a hose running one way and need it to turn a corner, but still gotta be able to jiggle it some, is this the kinda thing that'd work?
Answer by: Customer Support on Jul 19, 2025, 8:52 AM
This swivel fitting is indeed what you're after. It's made to connect two #12 female pipe ports at a 90-degree angle and still let you make rotational adjustments after it's all hooked up.
Question by: Neal S on Apr 30, 2025, 11:20 AM
Got a line that needs to turn 90 degrees but also has to rotate a little after I get everything bolted down, will this fitting handle that?
Answer by: Customer Support on May 2, 2025, 6:44 AM
Rotational adjustment after installation is exactly what the swivel design on this fitting is built for. You can lock everything into place and then orient the hose or line where it needs to sit without having to back anything out and start over. That makes it real handy during final assembly when you're trying to clean up routing on a tight machine.
