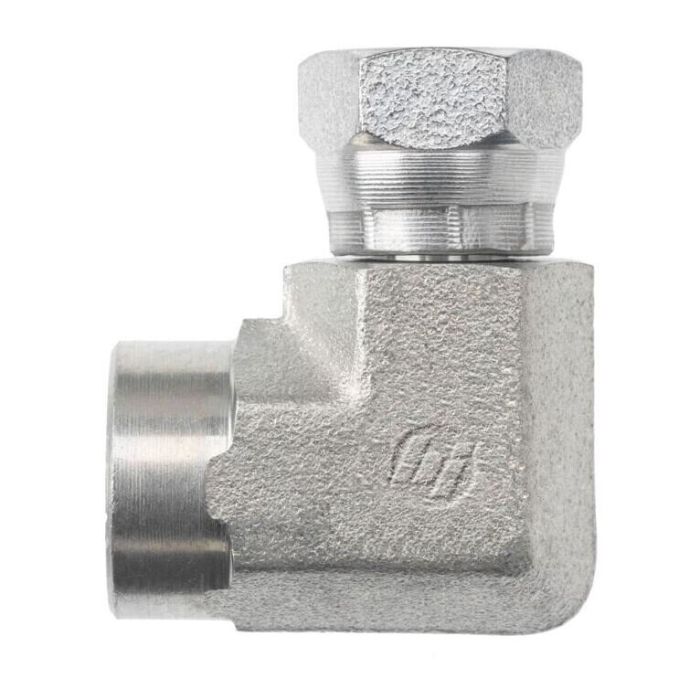

16FP-16FPS 90 ELBOW STNLS

Description & Features

Engineered for high-performance hydraulic applications, this 90-degree elbow fitting is crafted from forged stainless steel, ensuring durability and resistance to corrosion. The 16FP-16FPS 90 Elbow Stnls features a robust construction ideal for systems operating under a maximum dynamic pressure of 2,500 PSI. With a Brennan series specification of 1502-FG, this component guarantees compatibility with standard industrial setups.

Designed with precision, this elbow fitting includes a female NPTF thread (1-11-1/2) on one end and a female NPSM swivel thread (1-11-1/2) on the other, conforming to SAE J476 and J514 standards. The Brennan C Hex measures 1.500 mm, while the centerline lengths are 2.080 mm and 1.730 mm respectively, ensuring secure and efficient connections in complex hydraulic configurations.

SKU: 1502-16-16-SS

Supplier Part Number (MPN): 1502-16-16-SS

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 1502-16-16-SS	Product Weight 1.32 lbs

Product Questions & Answers (1)

Question by: Ronnie P on May 31, 2025, 6:02 AM

Will this fitting hold up to a hydraulic system running at 2500 PSI?

Answer by: Customer Support on Jun 1, 2025, 9:00 AM

Absolutely. This elbow fitting is rated to handle a maximum dynamic pressure of 2,500 PSI, so it should be suitable for your system as long as it doesn't exceed that pressure.
