#20 FP X #16 FP SWIVEL 90*

Description & Features

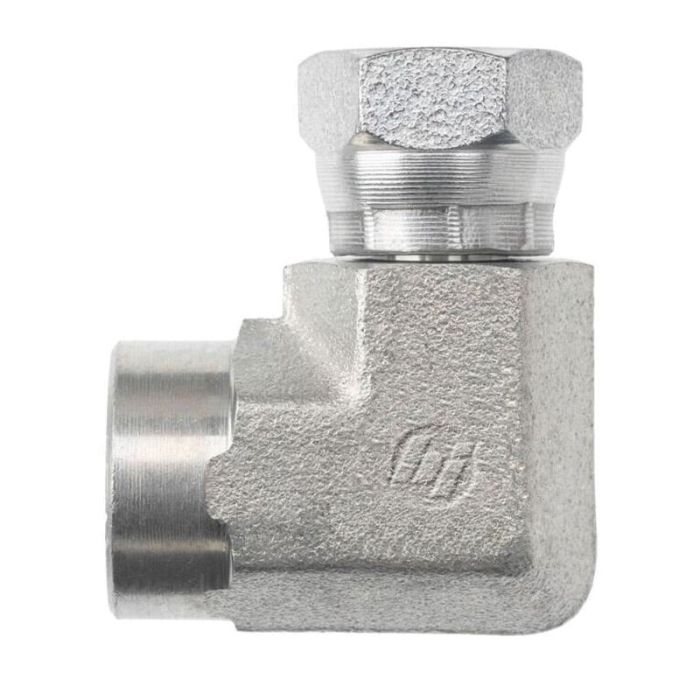

Crafted from forged steel, the Brennan 90-degree swivel elbow is designed for robust industrial applications. It features a female NPTF connection on one side and a female NPSM swivel on the other, ensuring secure and adaptable connectivity. This component is engineered to handle a maximum dynamic pressure of 2,500 PSI, making it suitable for high-pressure environments.

The #20 FP X #16 FP SWIVEL 90* elbow is built with precision, conforming to SAE J476 and SAE J514 standards. Its compact design, with a centerline length of 2.180 mm and an overall length of 1.700 mm, facilitates integration into complex hydraulic systems. The high-quality construction makes it a reliable choice for demanding settings where durability is crucial.

SKU: 1502-20-16-FG

Supplier Part Number (MPN): 1502-20-16-FG

Alternate Part Numbers: 1502-20-16, C1DV11

Specifications

Brand
BRENNAN
Connection Size 1
1-1/4 in
Connection Size 2
1 in
Connection Type
FNPSM Swivel, FNPT
Connection Type 1
Female SAE NPTF
Connection Type 2
SAE FNPSM Swivel
Cubic Inch Space L x W x H Dimensions
14.32 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.7 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1-1/2 in
l Dimensions
1.7 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
1500 psi
Series
1502-FG Series
Thread 2 Drill Dimensions
0.78 in
Thread B1 Drill Dimensions
1.25 in
Thread Size
1-1/4-11-1/2 x 1-11-1/2

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
#4FP X #2 FP Swivel 90*

1502-04-02-FG

1/4 in

1/8 in

1/4-18 x 1/8-27

0.563 in

1502-04-04-FG

1502-04-04-FG

1/4 in

1/4 in

1/4-18

11/16 in

1502-06-04-FG

1502-06-04-FG

3/8 in

1/4 in

3/8-18 x 1/4-18

11/16 in

#6 FP X #6 FP Swivel 90*

1502-06-06-FG

3/8 in

3/8 in

3/8-18

7/8 in

1502-08-04-FG

1502-08-04-FG

1/2 in

1/4 in

1/2-14 x 1/4-18

11/16 in

#8 FP X #8 FP SWIVEL 90

1502-08-08-FG

1/2 in

1/2 in

1/2-14

1 x 1 in

ADAPTER

1502-12-08

3/4 in

1/2 in

3/4-14 x 1/2-14

1 x 1 in

#12 FP X #12 FP Swivel 90*

1502-12-12-FG

3/4 in

3/4 in

3/4-14

1-1/4

1502-12-16-FG

1502-12-16-FG

3/4 in

1 in

1-11-1/2 x 3/4-14

1-1/2 in

#16 FP X #12 FP SWIVEL 90*

1502-16-12

1 in

3/4 in

1-11-1/2 x 3/4-14

1-1/4

16FP-16FPS 90 DEG ELBOW

1502-16-16-FG

1 in

1 in

1-11-1/2

1-1/2 in

1502-20-20-FG

1502-20-20-FG

1-1/4 in

1-1/4 in

1-1/4-11-1/2

1-7/8 in

24FP-24FPS 90 DEG ELBOW

1502-24-24-FG

1-1/2 in

1-1/2 in

1-1/2-11-1/2

2-1/8 in

#32 FP X #32 FP SWIVEL 90*

1502-32-32

2 in

2 in

2-11-1/2

2-5/8 in

Product Questions & Answers (1)

Question by: Donna L on Mar 6, 2026, 11:55 AM
Will this fitting hold up in a hydraulic system that runs at a steady 2,000 psi?
Answer by: Customer Support on Mar 7, 2026, 4:50 PM
This 90-degree elbow is rated for a maximum dynamic pressure of 2,500 PSI, so it should be suitable for a system running at 2,000 psi, assuming there are no pressure spikes exceeding that level.
