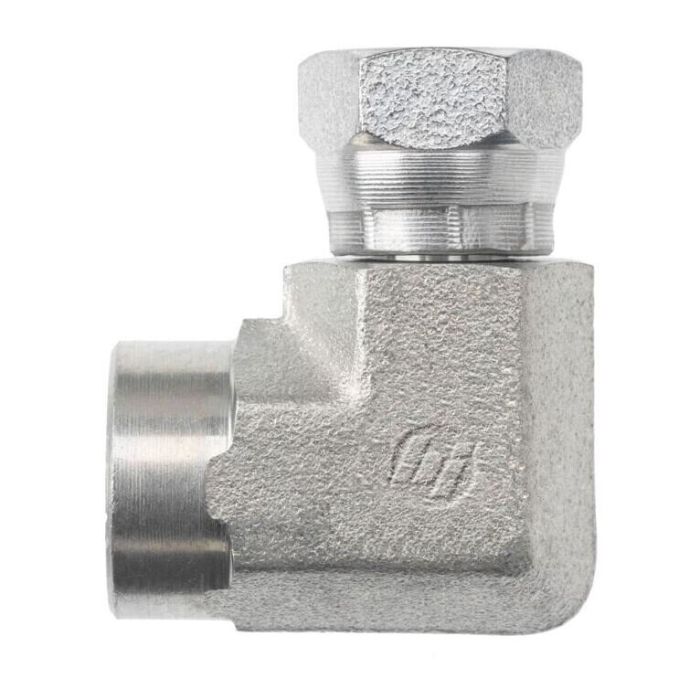

24FP-24FPS 90 ELBOW STNLS

Crafted from robust forged stainless steel, the 24FP-24FPS 90 Elbow Stnls is designed for industrial applications requiring reliable and durable connections. Engineered to withstand a maximum dynamic pressure of 2,000 PSI, this elbow fitting is ideal for high-pressure environments. The component features a female NPTF thread type on one end and a female NPSM swivel on the other, both conforming to SAE J476 and SAE J514 specifications, respectively. With a Brennan C Hex size of 2.125 mm and centerline lengths of 2.830 mm and 2.410 mm, it ensures precise alignment and secure installations.

Part of the 1502-FG series, this elbow fitting is recognized for its versatility and resilience in demanding settings. The overall length measures 2.080 mm, offering compactness without compromising functionality. Its application is particularly suited for hydraulic systems requiring robust and leak-proof connections. The 24FP-24FPS 90 Elbow Stnls exemplifies quality and precision, making it a preferred choice for industry professionals.

SKU: 1502-24-24-SS

Supplier Part Number (MPN): 1502-24-24-SS
