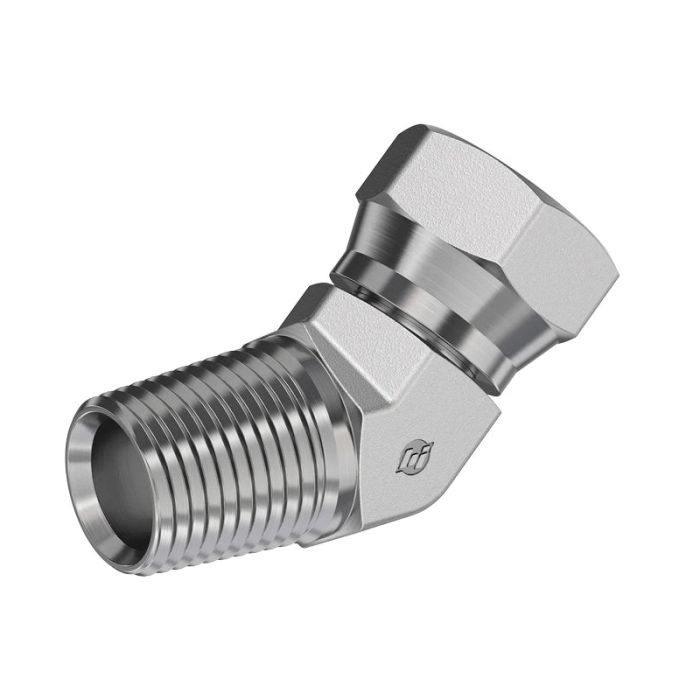

main product photo

#4 MP X #2 FP SWIVEL 45*

Ask A Question

Description & Features

This forged steel 45-degree elbow features a #4 MP x #2 FP Swivel configuration. It's constructed from forged steel for durability and reliability in demanding hydraulic applications. The fitting features a 1/4-18 Male NPTF thread (SAE J476 specification) on one end and a 1/8-27 Female NPSM Swivel thread (SAE J514 specification) on the other.

With a maximum dynamic pressure of 6,000 PSI, this fitting is suitable for high-pressure systems. Centerline lengths are 0.770 inches and 0.630 inches, with an overall length of 0.860 inches.

SKU: 1503-04-02-FG

Supplier Part Number (MPN): 1503-04-02-FG

Alternate Part Numbers: 1503-04-02, C1DV13

Specifications

Brand
BRENNAN
Connection Size 1
1/4 in
Connection Size 2
1/8 in
Connection Type
FNPSM Swivel, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
SAE FNPSM Swivel
Cubic Inch Space L x W x H Dimensions
0.963 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
0.86 in L
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
0.563 in
l Dimensions
0.86 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Series
1503-FG Series
Thread 2 Drill Dimensions
0.11 in
Thread B1 Drill Dimensions
0.281 in
Thread Size
1/4-18 x 1/8-27

Product Questions & Answers (1)

Question by: Eddie B on Jun 10, 2025, 6:50 AM
Reckon this fitting would work alright in a tight spot? Just need somethin' with a bend.
Answer by: Customer Support on Jun 12, 2025, 6:10 AM
It's a 45-degree elbow, forged steel, so it should hold up. The centerline lengths are 0.770 inches and 0.630 inches, with an overall length of 0.860 inches, so measure your space and see if that fits.
