ADAPTER

Description & Features

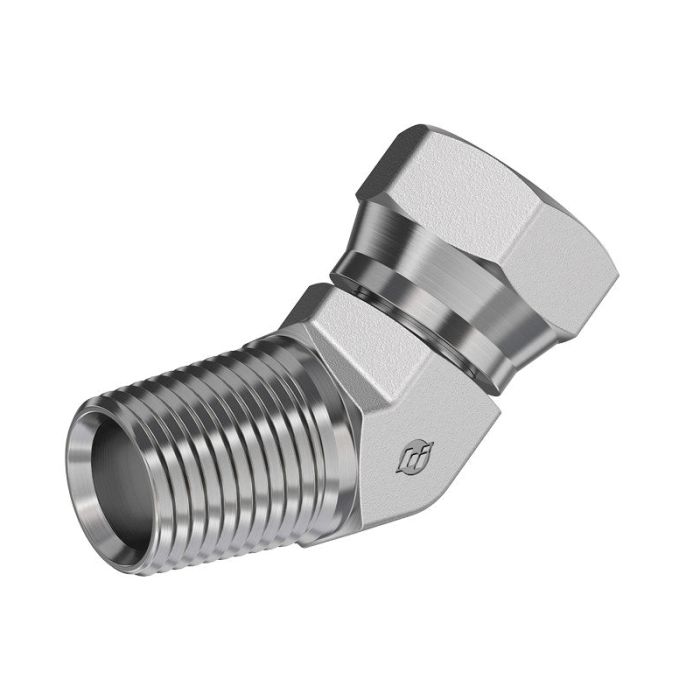

A #6 Male Pipe to #8 Female Pipe Swivel adapter configured at a 45-degree angle, this fitting is manufactured by Brennan Industries and suited for hydraulic line connections where directional routing and thread-size transition are required in a single component. The swivel feature allows the female end to rotate freely during installation, reducing line stress and simplifying assembly in tight or fixed-orientation configurations.

As an adapter bridging a #6 MP thread to a #8 FP swivel interface at 45 degrees, it serves common hydraulic circuit assembly needs where mismatched port sizes or angled routing must be addressed without additional fittings.

SKU: 1503-06-08

Supplier Part Number (MPN): 1503-06-08-FG

Alternate Part Numbers: A2049-8-6S, C1DV15

Specifications

Brand
BRENNAN
Connection Size 1
3/8 in
Connection Size 2
1/2 in
Connection Type
FNPSM Swivel, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
SAE FNPSM Swivel
Dimension Standards
SAE J476, SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
1 x 1 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
5000 psi
Series
1503-FG Series
Thread Size
1/2-14 x 3/8-18

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
16MP-20FPS 45 DEG Elbow

1503-16-20-FG

1-1/4 in

1 in

1-1/4-11-1/2 x 1-11-1/2

1-7/8 in

#4 MP X #2 FP SWIVEL 45*

1503-04-02-FG

1/4 in

1/8 in

1/4-18 x 1/8-27

0.563 in

#4 MP X #4 FP Swivel 45*

1503-04-04-FG

1/4 in

1/4 in

1/4-18

11/16 in

#6 MP X #6 FP Swivel 45*

1503-06-06-FG

3/8 in

3/8 in

3/8-18

7/8 in

#8 MP X #4 FP SWIVEL 45*

1503-08-04-FG

1/2 in

1/4 in

1/2-14 x 1/4-18

11/16 in

#8 MP X #6 FP SWIVEL 45*

1503-08-06

1/2 in

3/8 in

1/2-14 x 3/8-18

7/8 in

#8 MP X #8 FP Swivel 45*

1503-08-08-FG

1/2 in

1/2 in

1/2-14

1 x 1 in

#12 MP X #12 FP Swivel 45*

1503-12-12-FG

3/4 in

3/4 in

3/4-14

1-1/4

#16 MP X #12 FP SWIVEL 45*

1503-16-12

1 in

3/4 in

1-11-1/2 x 3/4-14

1-1/4

#16 MP X #16 FP Swivel 45*

1503-16-16-FG

1 in

1 in

1-11-1/2

1-1/2 in

1503-20-16-FG

1503-20-16-FG

1-1/4 in

1 in

1-1/4-11-1/2 x 1-11-1/2

1-1/2 in

#20 MP X #20 FP SWIVEL 45*

1503-20-20

1-1/4 in

1-1/4 in

1-1/4-11-1/2

1-7/8 in

24MP-24FPS 45

1503-24-24

1-1/2 in

1-1/2 in

1-1/2-11-1/2

2-1/8 in

Product Questions & Answers (2)

Question by: Dustin A on Sep 27, 2025, 11:19 AM
Is this here adapter something I can use with a swivel fitting, or do I need a different kinda setup?
Answer by: Customer Support on Sep 29, 2025, 9:57 AM
Meant to be used with swivel fittings, this adapter has a #6 MP to connect to your male pipe threads, and a #8 FP for your female pipe swivel connection.
Question by: Ross H on Dec 13, 2025, 6:13 AM
what's the thread size difference between the male and female ends on this adapter?
Answer by: Customer Support on Dec 15, 2025, 6:40 AM
The male end is a #6 MP (male pipe) and the female end is a #8 FP swivel. So you've got a size step-up going from the 6 on the male side to the 8 on the female side, with the female end being a swivel configuration at a 45-degree angle.
