#8 MP X #4 FP SWIVEL 45*

Description & Features

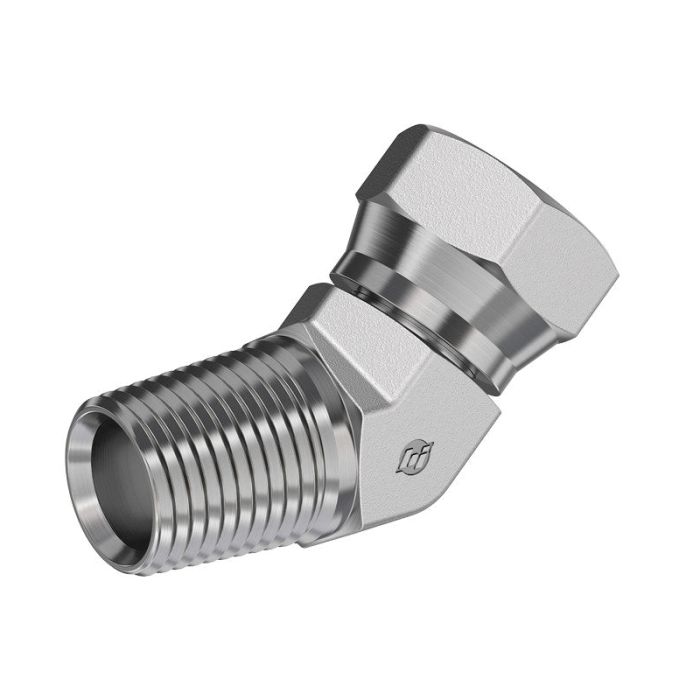

Forged steel construction makes the #8 MP X #4 FP Swivel 45° a reliable choice for angled connections in demanding hydraulic systems rated up to 6,000 PSI dynamic pressure. The 45-degree elbow configuration accommodates directional changes in tight or confined installations where straight fittings are impractical.

The male end features a 1/2-14 NPTF thread conforming to SAE J476, while the female swivel end uses a 1/4-18 NPSM thread per SAE J514, a combination that supports secure, leak-resistant connections across mismatched port sizes. The swivel design on the female end allows rotational adjustment during assembly without disturbing the seal, simplifying installation in fixed-component setups. Forged steel construction provides the structural integrity needed for high-cycle, high-pressure hydraulic applications.

This fitting is part of Brennan's 1503-Fg series. California residents should refer to Prop 65 warnings prior to use.

SKU: 1503-08-04-FG

Supplier Part Number (MPN): 1503-08-04-FG

Alternate Part Numbers: 1503-08-04, C1DV16

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
1/4 in
Connection Type
FNPSM Swivel, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
SAE FNPSM Swivel
Cubic Inch Space L x W x H Dimensions
2.667 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.17 in L
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
11/16 in
l Dimensions
1.17 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
5000 psi
Series
1503-FG Series
Thread 2 Drill Dimensions
0.21 in
Thread B1 Drill Dimensions
0.531 in
Thread Size
1/2-14 x 1/4-18

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
16MP-20FPS 45 DEG Elbow

1503-16-20-FG

1-1/4 in

1 in

1-1/4-11-1/2 x 1-11-1/2

1-7/8 in

#4 MP X #2 FP SWIVEL 45*

1503-04-02-FG

1/4 in

1/8 in

1/4-18 x 1/8-27

0.563 in

#4 MP X #4 FP Swivel 45*

1503-04-04-FG

1/4 in

1/4 in

1/4-18

11/16 in

#6 MP X #6 FP Swivel 45*

1503-06-06-FG

3/8 in

3/8 in

3/8-18

7/8 in

ADAPTER

1503-06-08

3/8 in

1/2 in

1/2-14 x 3/8-18

1 x 1 in

#8 MP X #6 FP SWIVEL 45*

1503-08-06

1/2 in

3/8 in

1/2-14 x 3/8-18

7/8 in

#8 MP X #8 FP Swivel 45*

1503-08-08-FG

1/2 in

1/2 in

1/2-14

1 x 1 in

#12 MP X #12 FP Swivel 45*

1503-12-12-FG

3/4 in

3/4 in

3/4-14

1-1/4

#16 MP X #12 FP SWIVEL 45*

1503-16-12

1 in

3/4 in

1-11-1/2 x 3/4-14

1-1/4

#16 MP X #16 FP Swivel 45*

1503-16-16-FG

1 in

1 in

1-11-1/2

1-1/2 in

1503-20-16-FG

1503-20-16-FG

1-1/4 in

1 in

1-1/4-11-1/2 x 1-11-1/2

1-1/2 in

#20 MP X #20 FP SWIVEL 45*

1503-20-20

1-1/4 in

1-1/4 in

1-1/4-11-1/2

1-7/8 in

24MP-24FPS 45

1503-24-24

1-1/2 in

1-1/2 in

1-1/2-11-1/2

2-1/8 in

Product Questions & Answers (1)

Question by: Hugh S on Jul 16, 2025, 5:28 PM
Will this fitting hold up in a system that sees pressure spikes now and then?
Answer by: Customer Support on Jul 18, 2025, 11:50 AM
Forged steel gives this fitting the strength for high-pressure hydraulic systems, even with pressure spikes up to 6,000 PSI.
