#8 MP X #8 FP Swivel 45*

Description & Features

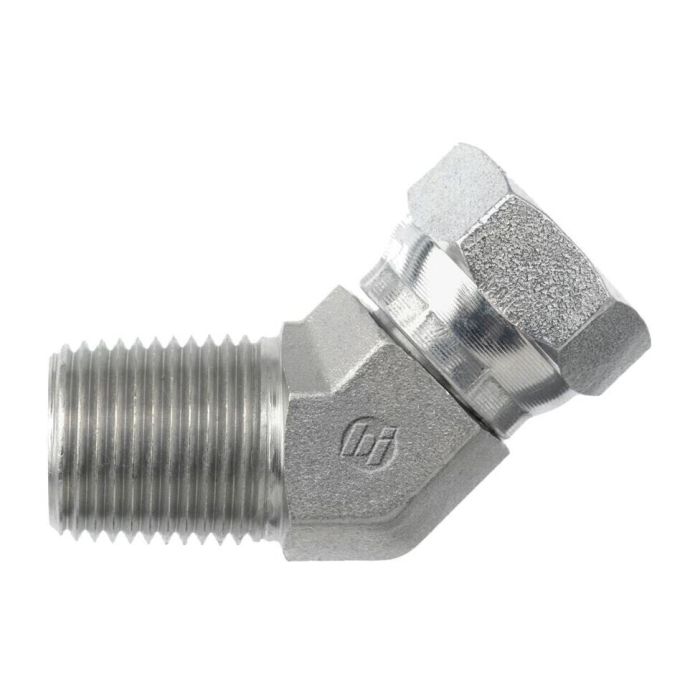

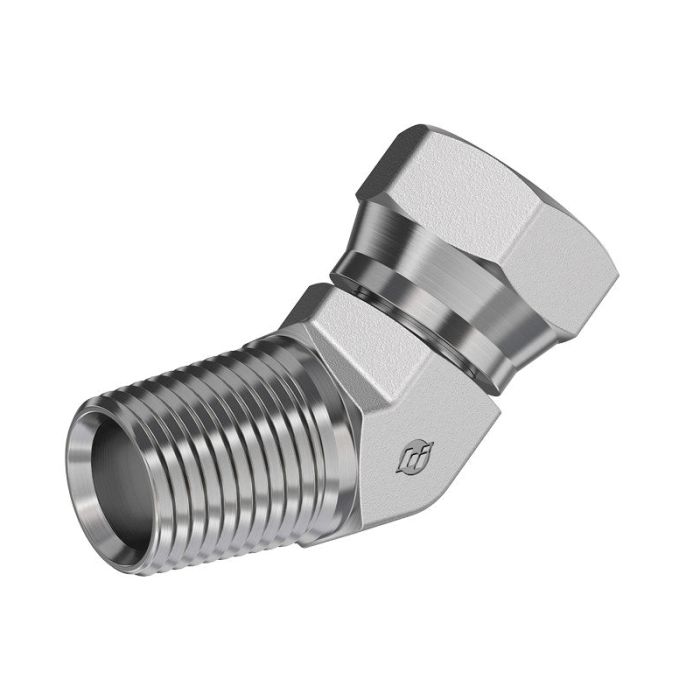

The #8 MP X #8 FP Swivel 45* elbow forged by Brennan Industries Inc is a robust and reliable component suitable for various industrial applications. Fabricated from forged steel this elbow provides high strength and durability under dynamic pressure conditions up to 5 000 psi.

Engineered with a 45-degree swivel it features a male NPTF thread on one end adhering to SAE J476 specifications and a female NPSM swivel thread on the other end complying with SAE J514 standards. With overall dimensions including a 1.170 mm length and cubic inch space of 3.722 it is designed for precise fitting in complex assemblies.

Its centerline lengths of 1.160 mm and 0.880 mm ensure compatibility with a variety of setups while the 1.000 mm hex size simplifies the installation process. This component is ideal for demanding environments where reliable connections are critical for maintaining system integrity.

MPN: 1503-08-08-FG

Supplier Part Number: 1503-08-08-FG

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 1503-08-08-FG	Product Weight 1.00 lbs

Product Questions & Answers (3)

Question by: Peggy H on Aug 13, 2025, 2:02 PM

trying to swap out an elbow on a 1/2-14 line, is this one male pipe thread on one side and a swivel female on the other?

Answer by: Customer Support on Aug 15, 2025, 11:41 AM

On the B1 end you get a 1/2-14 male NPTF thread (SAE J476), and on the B2 end it has a 1/2-14 female NPSM swivel thread (SAE J514). It is a 45 degree swivel elbow, so it is meant to give you that angled turn with a swivel connection on the female side.

Question by: Eddie E on Feb 11, 2026, 6:17 AM

Got a 45-degree elbow spot that needs a swivel end on one side and a pipe thread on the other, this the right setup for that?

Answer by: Customer Support on Feb 12, 2026, 7:39 AM

That's what this fitting does. One end is a male NPTF pipe thread, size 1/2-14, built to SAE J476 spec. The other end is a female NPSM swivel, also 1/2-14, conforming to SAE J514. The swivel lets you adjust the line position after assembly without fighting the whole fitting to get things lined up right. Forged steel construction means it holds up in systems running dynamic pressure up to 5,000 psi.

Question by: Frank T on Oct 10, 2025, 6:52 PM

What's the pressure rating on this 45 degree swivel?

Answer by: Customer Support on Oct 12, 2025, 9:43 AM

This elbow is rated for dynamic pressures up to 5,000 psi, making it suitable for demanding hydraulic applications.
