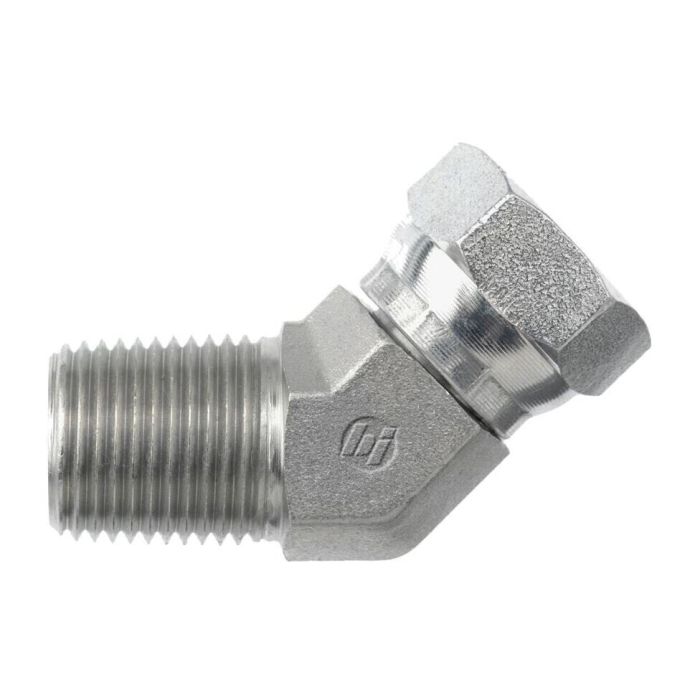

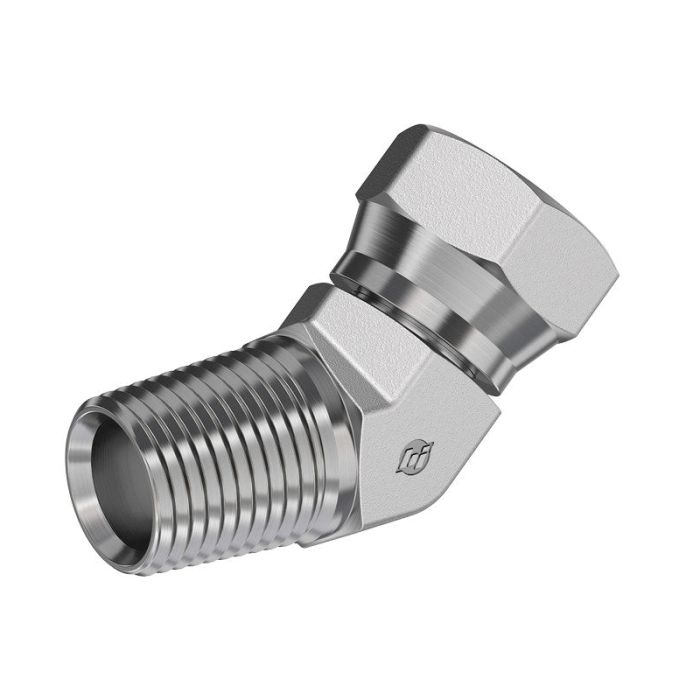

main product photo

08MP-08FPS 45° Elbow Stnls

Ask A Question

Description & Features

This forged stainless steel 45° elbow features a 1/2-14 Male NPTF thread and a 1/2-14 Female NPSM Swivel thread. Designed for robust hydraulic applications, the 08MP-08FPS 45° Elbow Stnls is part of the 1503-FG series from Brennan Industries.

With a maximum dynamic pressure rating of 5,000 PSI, this fitting ensures reliable performance. Key dimensions include a 1.160 mm centerline length 1, a 0.880 mm centerline length 2, and a 1.170 mm overall length. The thread B1 drill measures 0.531 mm, while the thread B2 drill measures 0.440 mm.

SKU: 1503-08-08-SS

Supplier Part Number (MPN): 1503-08-08-SS

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
FNPSM Swivel, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
SAE FNPSM Swivel
Cubic Inch Space L x W x H Dimensions
3.722 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.17 in L
Fitting Type
45 deg Elbow
Hex Size
1 x 1 in
l Dimensions
1.17 in
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Maximum Operating Pressure
5000 psi
Series
1503-FG Series
Thread 2 Drill Dimensions
0.44 in
Thread B1 Drill Dimensions
0.531 in
Thread Size
1/2-14

Product Questions & Answers (1)

Question by: Tammy P on Sep 29, 2025, 9:36 AM
I'm swapping out a fitting on my hydraulic line. Will this elbow work with standard NPT threads?
Answer by: Customer Support on Oct 1, 2025, 6:34 AM
This elbow has a Male NPTF thread (B1) and a Female NPSM Swivel thread (B2), both sized at 1/2-14. The NPTF thread conforms to SAE J476, while the NPSM Swivel thread adheres to SAE J514 standards.
