45 MP to FP SS

Description & Features

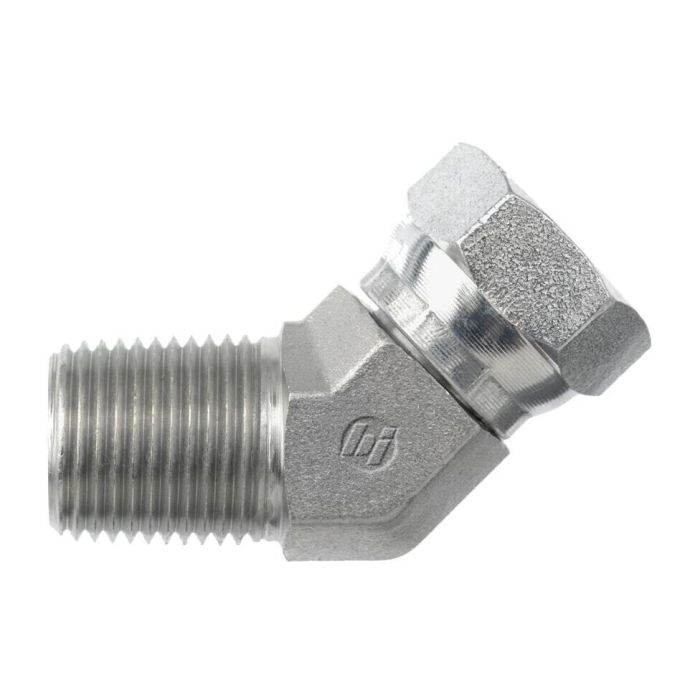

Forged from stainless steel, this 45-degree elbow provides a corrosion-resistant solution for angled connections in hydraulic and fluid systems rated up to 3,000 PSI dynamic pressure. The 45 MP to FP SS fitting is part of Brennan Industries' 1503-Fg series and transitions between a 3/4-14 Male Nptf thread (SAE J476) and a 3/4-14 Female Npsm Swivel thread (SAE J514), making it well suited for installations where rotational alignment during assembly is a practical requirement.

The swivel end simplifies positioning without disturbing the sealed connection, while the forged stainless steel construction supports use in environments where carbon steel is not appropriate, including washdown, marine-adjacent, or chemically active settings. With a hex size of 1.250 in. and compact overall geometry, the fitting installs with standard tooling in space-constrained applications.

California Residents: Prop-65 Warning

SKU: 1503-12-12-SS

Supplier Part Number (MPN): 1503-12-12-SS

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 1503-12-12-SS	Product Weight 0.40 lbs

Product Questions & Answers (1)

Question by: Johnny B on Mar 7, 2026, 8:11 PM

Reckon this elbow fitting would hold up okay in a salt water environment on my boat?

Answer by: Customer Support on Mar 9, 2026, 7:49 PM

Forged stainless steel was selected specifically to resist corrosion in environments where standard carbon steel fittings would be prone to rust, so it should be well-suited for marine applications.
