1503-20-16-FG

Description & Features

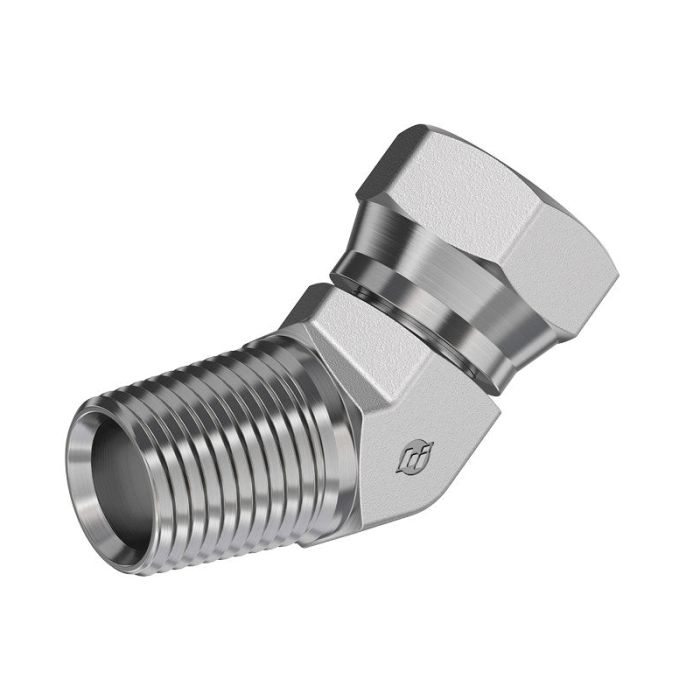

Designed for seamless integration into hydraulic systems, the #20 MP x #16 FP Swivel 45° fitting is a versatile component ideal for applications requiring reliable fluid connectivity. This fitting, crafted by Brennan Industries, ensures durability and performance in demanding environments. The 45-degree swivel design facilitates flexible installation, making it suitable for configurations where space and directional flow are considerations.

Constructed to meet industry standards, the 1503-20-16-FG fitting features a male pipe (MP) connection on one end and a female pipe (FP) swivel on the other, providing robust and leak-free connections. Its precision engineering supports optimal fluid transfer, enhancing system efficiency. With a strong reputation for quality, Brennan Industries fittings are a dependable choice for industrial hydraulic applications.

SKU: 1503-20-16

Supplier Part Number (MPN): 1503-20-16-FG

Specifications

Brand
BRENNAN
Connection Size 1
1-1/4 in
Connection Size 2
1 in
Connection Type
FNPSM Swivel, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
SAE FNPSM Swivel
Dimension Standards
SAE J476, SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
1-1/2 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
2500 psi
Series
1503-FG Series
Thread Size
1-1/4-11-1/2 x 1-11-1/2
