Description & Features

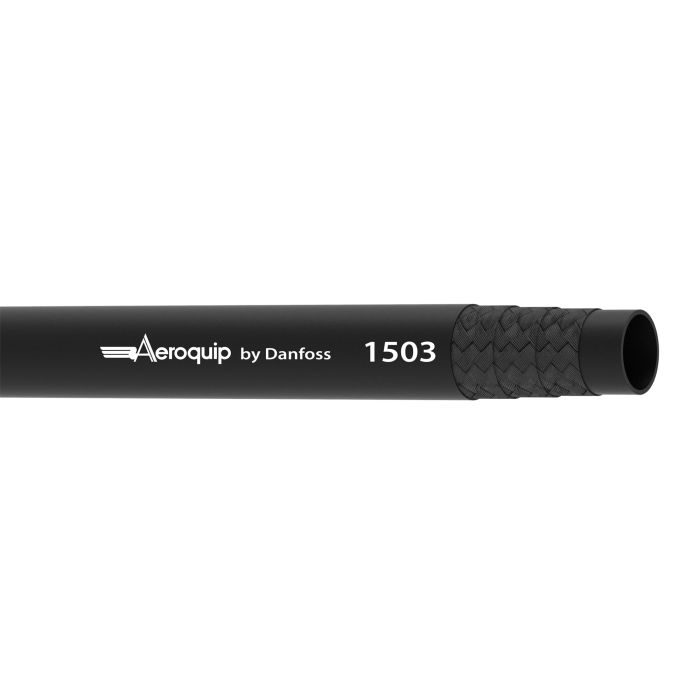

Eaton Aeroquip 1503 Series hose is suitable for hydraulics, air, gasoline, fuel, and lubricating oil applications. The hose features a highly abrasion resistant textile cover, and provides proven reliability with high temperature resistance.

This Aeroquip hose is constructed with a synthetic rubber tube and three-braid polyester and wire reinforcement. Meeting SAE J1402 and SAE 100R5 standards, it also complies with USCG, DOT FMVSS 106, and DNV certifications. The conductive hose has a -32 dash size and a minimum bend radius of 13.25 inches.

SKU: 1503-32

Supplier Part Number (MPN): 1503-32

Specifications

Abrasion Resistance 29	Application Hydraulics, air, gasoline, fuel and lubricating oils.	Certifications SAE J1402\|SAE 100R5	Color Black	Compliances USCG\|DOT FMVSS 106\|DNV	Conductivity 30	Construction 3 Braid	Cover Material Textile	Dash Size -32	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Highly abrasion resistant cover\|Small number of hoses for many fuel options\|Proven reliability with high temperature resistance	ICC Hoses and Flexible Tubes	Impulse Cycle Life 500000 cycle	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 13.25	Minimum Bend Radius 13.25	Minimum Working Temperature -40	Product Width 2.27	Qualified Hose Fittings Reusable, 100R5 Crimp	Reinforcement Material Polyester and Wire	Sub Brand Aeroquip	Supplier Part Number 1503-32	Tube Material Synthetic Rubber	Product Weight 2.17 lbs

Product Questions & Answers (2)

Question by: Danny C on Mar 29, 2025, 8:44 AM

what all can this hose handle as far as fluids go? asking cause we run a mix of fuel lines and hydraulic stuff on the same equipment

Answer by: Customer Support on Mar 31, 2025, 6:45 AM

Hydraulics, air, gasoline, fuel, and lubricating oils are all covered with this hose. The 1503 Series was put together specifically so one hose type could handle several different fluid applications without needing to stock a bunch of different products. That consolidation is kind of the whole point of the design.

Question by: Ralph R on Jul 12, 2025, 7:19 AM

Will this hose hold up to everyday use with gasoline and oil?

Answer by: Customer Support on Jul 13, 2025, 3:26 PM

Yes, this Aeroquip hose is designed for use with hydraulics, air, gasoline, fuel, and lubricating oils.
