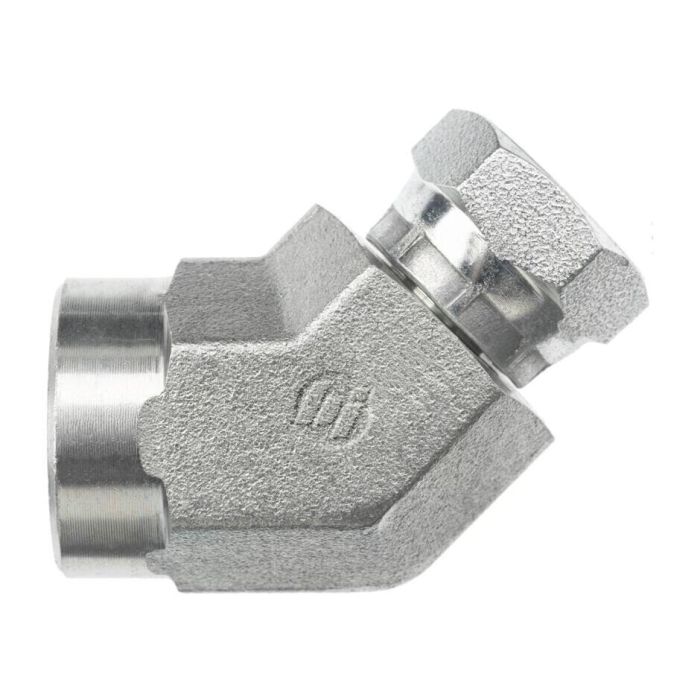

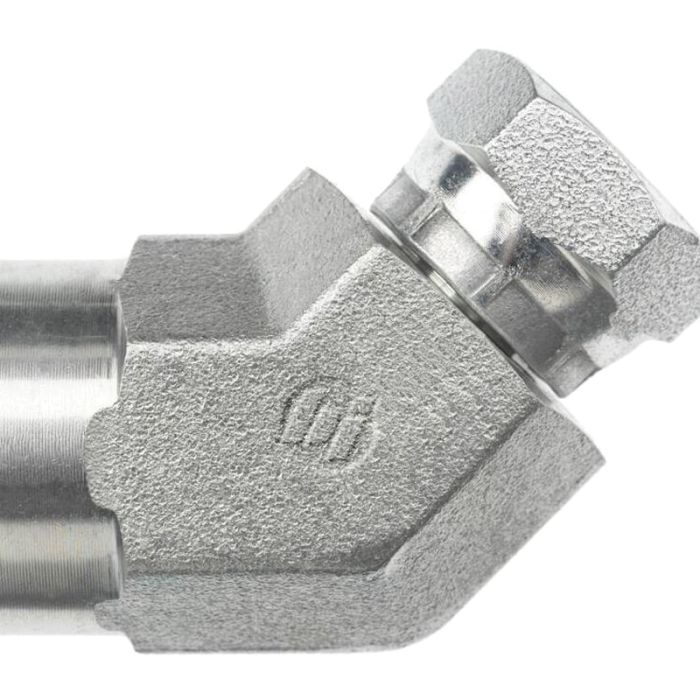

06FP-06FPS 45 DEG Elbow

Ask A Question

Description & Features

This forged steel 45-degree elbow features a 3/8-18 Female NPTF thread on one end and a 3/8-18 Female NPSM Swivel thread on the other.

The 06FP-06FPS 45 DEG Elbow is part of the 1504-FG Series and adheres to SAE J476 and SAE J514 thread specifications. It has a C Hex of 0.875 inches and a centerline length of 0.770 inches on one side and 0.980 inches on the other.

SKU: 1504-06-06-FG

Supplier Part Number (MPN): 1504-06-06-FG

Alternate Part Numbers: 1504-06-06, A2050-6-6S

Specifications

Brand
BRENNAN
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
FNPSM Swivel, FNPT
Connection Type 1
Female SAE NPTF
Connection Type 2
SAE FNPSM Swivel
Dimension Standards
SAE J476, SAE J514
Dimensions
3/4 in L
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
7/8 in
l Dimensions
0.75 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
4500 psi
Series
1504-FG Series
Thread 2 Drill Dimensions
0.32 in
Thread B1 Drill Dimensions
0.406 in
Thread Size
3/8-18

Product Questions & Answers (2)

Question by: Dwight K on May 5, 2025, 9:52 AM
trying to replace an elbow i got marked 1504-06-06. is this the same deal or am i gonna be off on threads
Answer by: Customer Support on May 6, 2025, 9:55 AM
It matches the 1504-06-06 alternate part number. The threads are 3/8-18 female NPTF on one end and 3/8-18 female NPSM swivel on the other, so you will want your mating parts to be those same thread types.
Question by: Lynn M on Jun 9, 2025, 4:01 PM
got a 3/8 NPTF female port on a manifold block and need a 45-degree swivel fitting to connect a hydraulic line coming in at an angle, this the right part for that?
Answer by: Customer Support on Jun 10, 2025, 7:38 PM
That setup is exactly what this elbow is built for. One end is a 3/8-18 Female NPTF, so it threads right into a standard NPTF port on your manifold. The other end is a 3/8-18 Female NPSM Swivel, which lets you connect and orient your line without twisting the hose or tube during tightening. The 45-degree angle gives you that directional change without needing to bend anything. Forged steel construction, so it holds up in working hydraulic environments.
