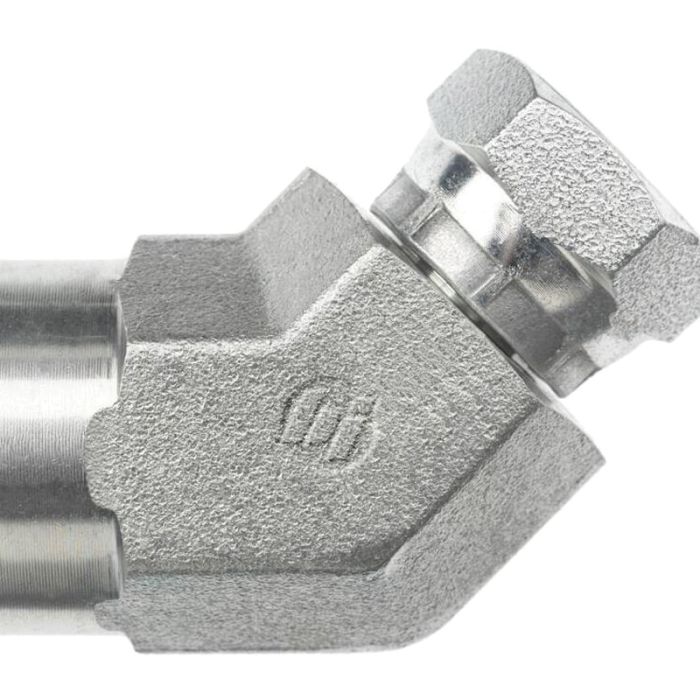

main product photo

06FP-08FPS 45 ELBOW FORG

Ask A Question

Description & Features

This forged steel 45-degree elbow features a 3/8-18 female NPTF thread conforming to SAE J476 and a 1/2-14 female NPSM swivel thread conforming to SAE J514 standards. The 06FP-08FPS 45 ELBOW FORG is part of the Brennan 1504-FG series.

It offers reliable connection and performance in hydraulic applications. The centerline lengths are 0.830 mm and 1.110 mm, respectively, with an overall length of 0.750 mm. The hex size is 1.062 mm.

SKU: 1504-06-08-FG

Supplier Part Number (MPN): 1504-06-08-FG

Specifications

Brand
BRENNAN
Connection Size 1
3/8 in
Connection Size 2
1/2 in
Connection Type
FNPSM Swivel, FNPT
Connection Type 1
Female SAE NPTF
Connection Type 2
SAE FNPSM Swivel
Dimension Standards
SAE J476, SAE J514
Dimensions
3/4 in L
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
1 x 1 in
l Dimensions
0.75 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
3000 psi
Series
1504-FG Series
Thread 2 Drill Dimensions
0.44 in
Thread B1 Drill Dimensions
0.406 in
Thread Size
1/2-14 x 3/8-18

Product Questions & Answers (3)

Question by: Steve L on Jan 7, 2026, 8:09 PM
what's the thread setup on this elbow, both ends?
Answer by: Customer Support on Jan 9, 2026, 8:02 AM
One end is a 3/8-18 female NPTF thread built to SAE J476, and the other is a 1/2-14 female NPSM swivel thread conforming to SAE J514. The NPSM swivel end gives you some rotational flexibility during installation, which helps a lot when you're working in tight spots and can't easily spin a line.
Question by: Tommy P on Apr 6, 2025, 9:47 AM
Is this thing made of steel all the way through?
Answer by: Customer Support on Apr 7, 2025, 2:43 PM
It is indeed forged steel, so you can count on its strength.
Question by: Shawn H on Jun 7, 2025, 7:53 PM
trying to swap out an elbow on my hydraulic line, what threads are on each end of this one?
Answer by: Customer Support on Jun 9, 2025, 2:28 PM
On the B1 side you get a 3/8-18 female NPTF thread built to SAE J476. The other end is a 1/2-14 female NPSM swivel thread built to SAE J514, and the fitting is a 45 degree forged steel elbow.
