08FP-08FPS 45 DEG ELBOW

Description & Features

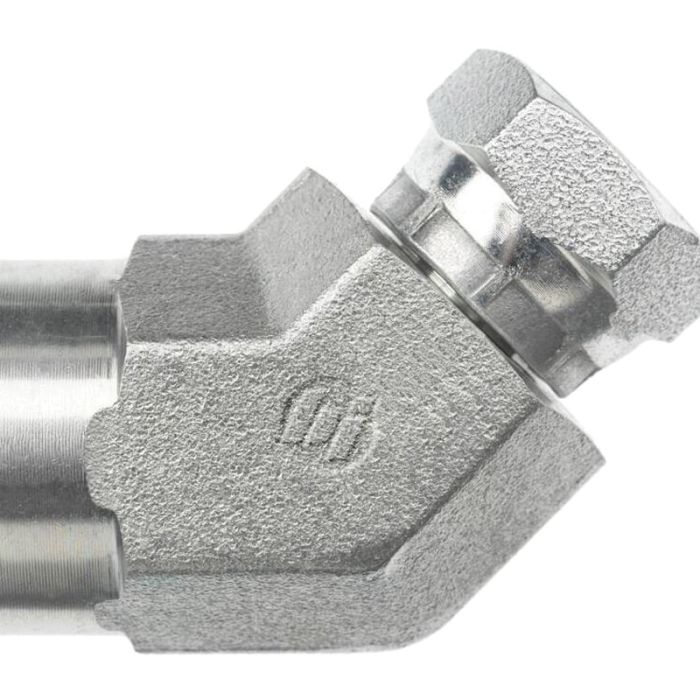

Manufactured by Brennan Industries, this 45-degree elbow fitting connects an 08 female pipe thread to an 08 female pipe swivel, making it well suited for hydraulic line routing where a mid-angle directional change is needed. The 45-degree bend reduces stress on hose and tube assemblies compared to sharper-angle fittings, supporting cleaner layout in tight or constrained installations.

The 08FP-08FPS 45 Deg Elbow is a reliable choice for hydraulic systems requiring a female-to-female swivel configuration at this common port size. The swivel end allows for easier assembly and alignment without twisting the mating line.

SKU: 1504-08-08

Supplier Part Number (MPN): 1504-08-08-FG

Alternate Part Numbers: A2050-8-8S

Specifications

Alternate Part Numbers Alternate Part Number A2050-8-8S	Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 1504-08-08-FG	Product Weight 0.34 lbs

Product Questions & Answers (2)

Question by: Cody M on Dec 13, 2025, 9:13 AM

trying to clean up a tight hose run, is this the kind of elbow that helps keep the line from getting kinked?

Answer by: Customer Support on Dec 14, 2025, 8:11 PM

With a 45 degree bend, it gives you a mid-angle change in direction so the hose or tube does not have to make as sharp of a turn. That can reduce stress on the assembly and make the routing look cleaner in cramped spots.

Question by: Rex H on Dec 6, 2025, 6:45 AM

Got a hydraulic line that needs to make a 45 degree turn but I can't have it twisting up on me during hookup. Will the swivel end on this fitting let me get everything lined up without putting a torque on the hose?

Answer by: Customer Support on Dec 7, 2025, 9:11 PM

That swivel end is exactly what handles that problem. When you're connecting the mating line, the swivel lets you rotate the fitting during assembly so the hose or tube doesn't have to twist to meet it. That makes alignment a lot cleaner, especially in spots where you don't have much room to maneuver during installation.
