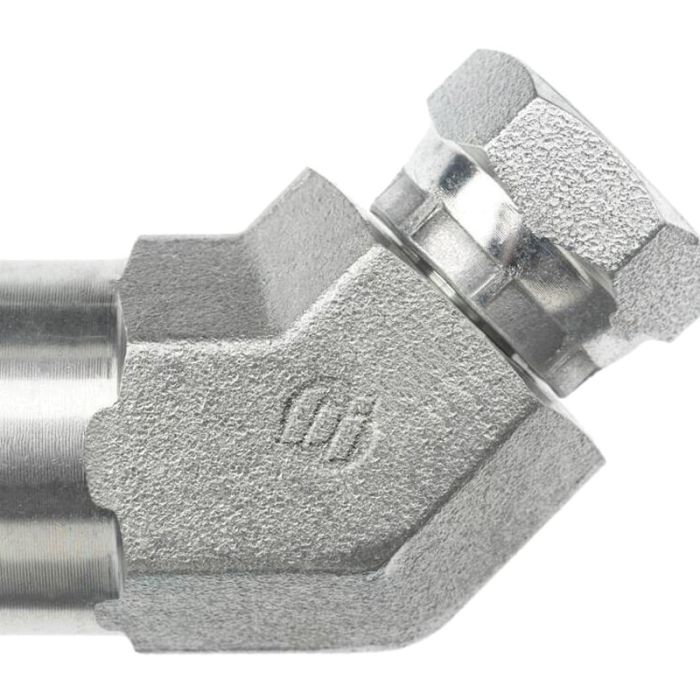

main product photo

24FP-24FPS 45 DEG ELBOW

Ask A Question

Description & Features

Crafted from forged steel, the 24FP-24FPS 45 DEG ELBOW ensures durability and reliability in demanding industrial environments. This elbow fitting features a 45-degree angle for efficient fluid direction and flow. It is designed with a Female NPTF connection on one end and a Female NPSM Swivel on the other, accommodating a range of hydraulic applications. The threads meet SAE J476 and SAE J514 specifications, ensuring compatibility and performance excellence in various systems.

With a Brennan C Hex measurement of 2.562 mm and overall length of 1.460 mm, this elbow fitting offers precise installation and integration into existing setups. The centerline lengths of 1.460 mm and 1.880 mm further enhance its adaptability for diverse industrial uses. This product, belonging to the Brennan Series 1504-FG, is a robust choice for professionals seeking quality and precision.

SKU: 1504-24-24-FG

Supplier Part Number (MPN): 1504-24-24-FG

Alternate Part Numbers: 1504-24-24, 1504-24-24FG, A2050-24-24S

Specifications

Brand
BRENNAN
Connection Size 1
1-1/2 in
Connection Size 2
1-1/2 in
Connection Type
FNPSM Swivel, FNPT
Connection Type 1
Female SAE NPTF
Connection Type 2
SAE FNPSM Swivel
Dimension Standards
SAE J476, SAE J514
Dimensions
1.46 in L
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
2-1/8 in
l Dimensions
1.46 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
1500 psi
Series
1504-FG Series
Thread 2 Drill Dimensions
1.315 in
Thread B1 Drill Dimensions
1.5 in
Thread Size
1-1/2-11-1/2

Product Questions & Answers (1)

Question by: Joyce P on Mar 5, 2026, 9:16 PM
Is this elbow fitting made to handle some serious pressure in hydraulic systems?
Answer by: Customer Support on Mar 7, 2026, 7:23 AM
Forged steel construction gives this 45 degree elbow the durability and reliability needed for demanding industrial environments.
