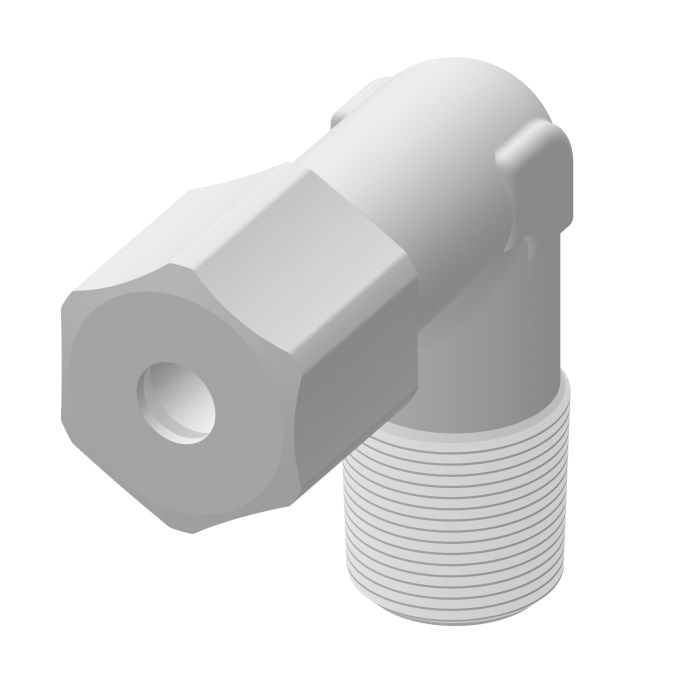

main product photo

Male Elbow

Ask A Question

Description & Features

This Eaton Industrial Hose Male Elbow is expertly designed for high-performance hydraulic applications. Crafted from durable molded nylon, it offers robust resistance to environmental stresses. The elbow features a 90-degree configuration, facilitating seamless connection in complex system layouts. Its ends are precisely sized, with a 0.25-inch female line/hose/tube end and a 0.375-inch male NPTF end, ensuring compatibility with a variety of industrial setups.

Engineered with Dura-Kote plating, this elbow adapter provides superior corrosion resistance, making it ideal for harsh operational environments. Its construction allows for higher operating pressures that exceed SAE standards, offering enhanced reliability and safety in demanding applications. The product is NSF listed, assuring compliance with industry standards. With a drop dimension of 1.0900, it ensures a precise fit in your hydraulic systems. This product is part of the Aeroquip brand, renowned for its design flexibility and extensive range.

SKU: 1569X4X6

Supplier Part Number (MPN): 1569X4X6

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Hose, MNPT
Connection Type 1
Hose
Connection Type 2
Male NPTF
Drop Dimensions
1.09 in
Fitting Type
90 deg Elbow
Hex Size
0.563 in
Material
Nylon
Material Construction
Nylon
nmfc
50
Segment Code
C
Series
1569X Series
Thread Sealant
Without Thread Sealant

Product Questions & Answers (3)

Question by: Darryl Y on Apr 16, 2025, 11:15 AM
what's the thread size on the male end of this fitting? trying to match it up to a 3/8 port on a manifold block
Answer by: Customer Support on Apr 17, 2025, 11:31 AM
The male end runs 3/8 NPTF, so it'll thread right into a standard 3/8 NPTF port without any adapters in between. The female tube side accepts 1/4 inch line, so just make sure your tubing matches that before you order.
Question by: Howard B on Feb 23, 2026, 1:29 PM
got a 1/4 line coming in and need to turn 90 degrees into a 3/8 NPTF port, is this the right elbow?
Answer by: Customer Support on Feb 24, 2026, 9:26 PM
For that hookup, the sizes on this adapter match what you described. One end is a 0.25 line or hose or tube female connection, and the other end is a 0.375 NPTF male, in a 90 degree elbow.
Question by: Neal H on May 14, 2025, 6:53 PM
Is this elbow NSF certified for potable water?
Answer by: Customer Support on May 16, 2025, 2:01 PM
Yes, this Eaton male elbow adapter is NSF listed.
