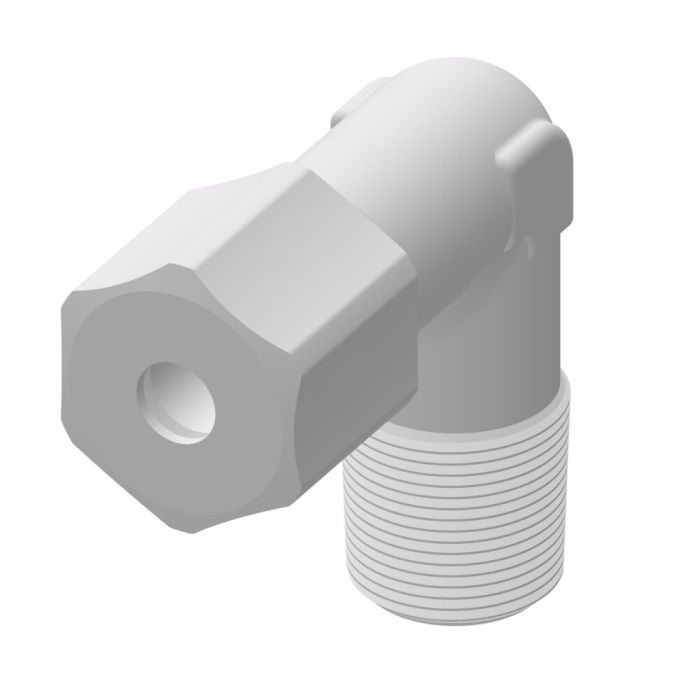

A 90-degree elbow adapter designed for connecting 3/8 in. compression tube lines to 1/4 in. NPTF male ports, the Danfoss / Eaton Molded Nylon Compression Tube fitting is NSF Listed and manufactured from molded nylon for reliable performance in fluid handling applications. The female-to-male configuration accommodates a drop dimension of 1.030 in., making it well-suited for installations where directional routing or space constraints require an angled transition between tube and threaded connections.
Sold under the Aeroquip brand, this fitting features Dura-Kote plating for corrosion resistance and is built to perform at operating pressures exceeding SAE standards. Aeroquip's broad range of compatible styles supports design flexibility across a wide variety of system configurations. With a package weight of 0.5 lb, it is sold individually.
SKU: 1569X6
Supplier Part Number (MPN): 1569X6
|
Alternate Part Numbers
MINO-00015X03332
|
Certifications
NSF Listed
|
Drop Dimension
1.03
|
Brand
Danfoss (Aeroquip Inc-Industrial Hose)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13556
|
End Size 1
0.38
|
End Size 2
0.25
|
End Type 1
Line/Hose/Tube
|
End Type 2
NPTF
|
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
|
ICC
Elbow Adapters
|
Item Type
Line/Hose/Tube Female/NPTF Male 90° Elbow Adapter
|
Language
English
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Product Material
Nylon
|
Product Width
0.57
|
Sub Brand
None
|
Supplier Part Number
1569X6
|
Product Weight
0.02 lbs
|
