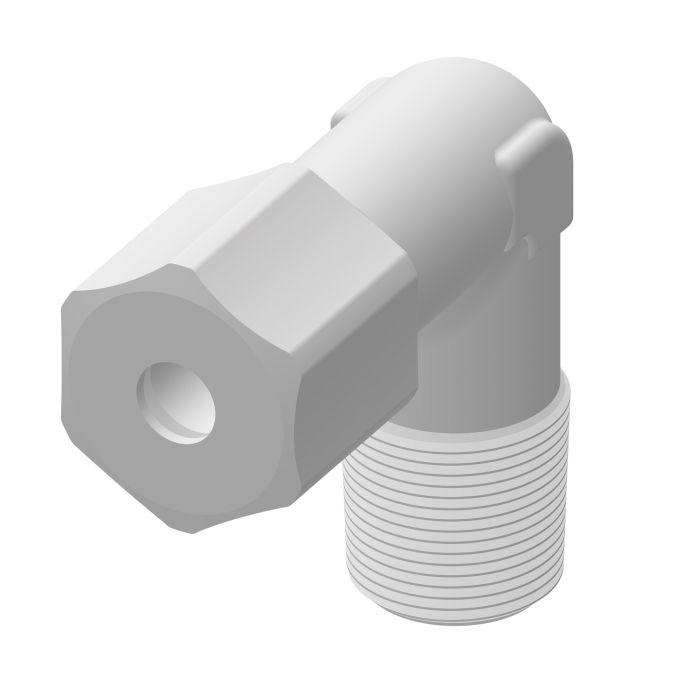

Male Elbow

Description & Features

This Eaton Industrial Hose 90° elbow adapter features a female Line/Hose/Tube end to a male NPTF end.

The nylon Male Elbow has Dura-Kote plating for superior corrosion resistance and design flexibility with hundreds of styles to choose from. It is also NSF Listed and operates at higher operating pressures above SAE standards.

SKU: 1569X8X4G

Supplier Part Number (MPN): 1569X8X4G

Specifications

Brand Aeroquip® by Danfoss	Connection Size 1 1/2 in	Connection Size 2 1/2 in	Connection Type Hose, MNPT	Connection Type 1 Hose	Connection Type 2 Male NPTF	Drop Dimensions 1.09 in	Fitting Type 90 deg Elbow	Material Nylon	Material Construction Nylon	nmfc 50	Segment Code C	Series 1569X Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (3)

Question by: Terry J on Jun 1, 2025, 10:28 AM

what size tubing does this thing hook up to and what's the thread on the male end?

Answer by: Customer Support on Jun 3, 2025, 9:59 AM

The tube-side connection handles 0.39 inch line or hose, and the male threaded end is a quarter-inch NPTF. The 90-degree elbow layout makes it a solid pick when you need to change direction in a tight spot without adding extra fittings.

Question by: Wes S on Mar 13, 2026, 6:42 AM

got a nylon tube line that needs to turn 90 degrees, is this the right kind of elbow for that?

Answer by: Customer Support on Mar 14, 2026, 3:49 PM

For a 90° turn, it’s a Line/Hose/Tube female to NPTF male elbow adapter made from nylon, so it’s meant to transition from a tube/line connection on one end to an NPTF male thread on the other.

Question by: Rhonda P on May 22, 2025, 3:39 PM

Will this nylon elbow hold up okay outside?

Answer by: Customer Support on May 23, 2025, 5:59 PM

Eaton's Dura-Kote plating gives this elbow superior corrosion resistance, which should help extend its life in outdoor environments.
