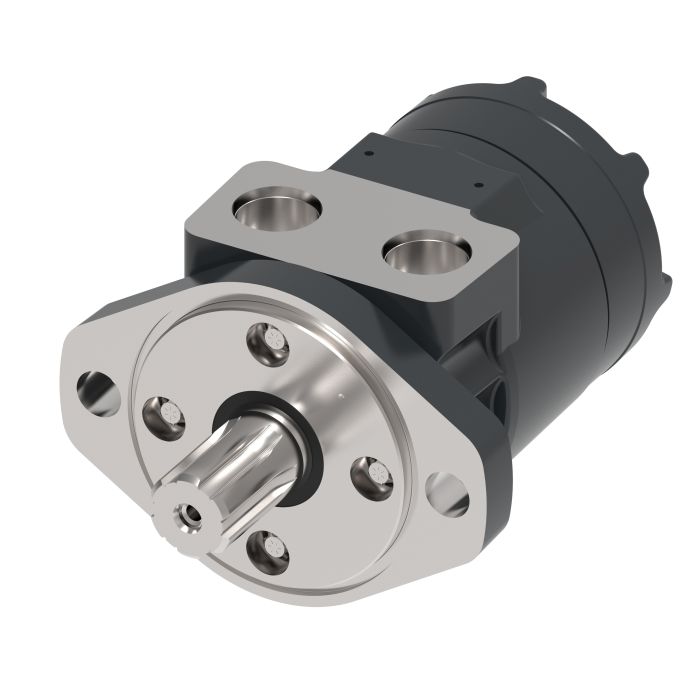

CHAR-LYNN T MOTOR

Ask A Question

Description & Features

Designed for demanding fluid power applications, the Char-Lynn T Motor is a hydraulic motor built to Char-Lynn's established standards for reliability in mobile and industrial equipment. Char-Lynn hydraulic motors are widely used in agricultural machinery, construction equipment, and industrial drive systems where consistent torque output and compact packaging are required.

As a Char-Lynn T-series unit, this motor is suited for low-speed, high-torque applications and is compatible with standard hydraulic circuits found across a broad range of equipment platforms.

SKU: 158-1037-001

Supplier Part Number (MPN): 158-1037-001

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Check Valve Function
Without Check Valve Function
Color
Black
Design Code
1
Dimensions
7.35 in L x 5.27 in W x 3.87 in H
Frame Size
195
Housing Material
Iron
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Aligned
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Series
T Series
Shaft Size
1 in Dia
Shaft Type
Straight Woodruff Keyed
Valve Type
Spool

Product Questions & Answers (1)

Question by: Eddie M on Nov 20, 2025, 10:28 AM
Will this Char-Lynn T motor hold up for continuous use in an industrial setting?
Answer by: Customer Support on Nov 22, 2025, 6:21 AM
This Char-Lynn T series motor is indeed suited for continuous operation, as it's built to Char-Lynn's reliability standards for both mobile and industrial equipment. Consistent torque output is a key feature in those environments.
