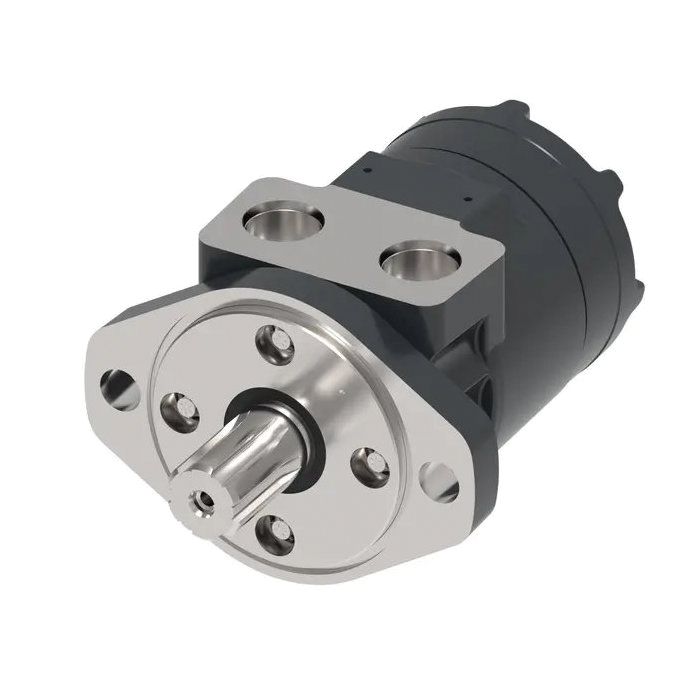

CHAR LYNN MT0049AA01AA0000000AB0A0A

Ask A Question

Description & Features

The Danfoss / Eaton Char-Lynn T Series Spool Geroler, CHAR LYNN MT0049AA01AA0000000AB0A0A, is constructed of ductile iron for durability in demanding environments. Its compact yet powerful design offers extended bearing life and an increased shaft seal.

This hydraulic motor is suitable for agricultural augers, harvesters, seeders, and railroad maintenance equipment. It offers a flow rate of 45 litres per minute and a torque rating of 174 newton metre.

SKU: 158-1427

Supplier Part Number (MPN): 158-1427-001

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Check Valve Function
Without Check Valve Function
Color
Black
Design Code
1
Dimensions
6.53 in L x 3.87 in W x 5.27 in H
Frame Size
80
Housing Material
Iron
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Aligned
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Segment Code
C
Series
T Series
Shaft Size
1 in Dia
Shaft Type
Straight Woodruff Keyed
Valve Type
Spool

Product Questions & Answers (1)

Question by: Larry C on Oct 15, 2025, 9:02 PM
Reckon this would hold up okay on a grain auger, running pretty steady during harvest?
Answer by: Customer Support on Oct 17, 2025, 5:18 PM
Designed to withstand demanding environments, this Char-Lynn T Series motor uses ductile iron for durability and features extended bearing life, making it suitable for continuous operation on agricultural equipment like grain augers.
