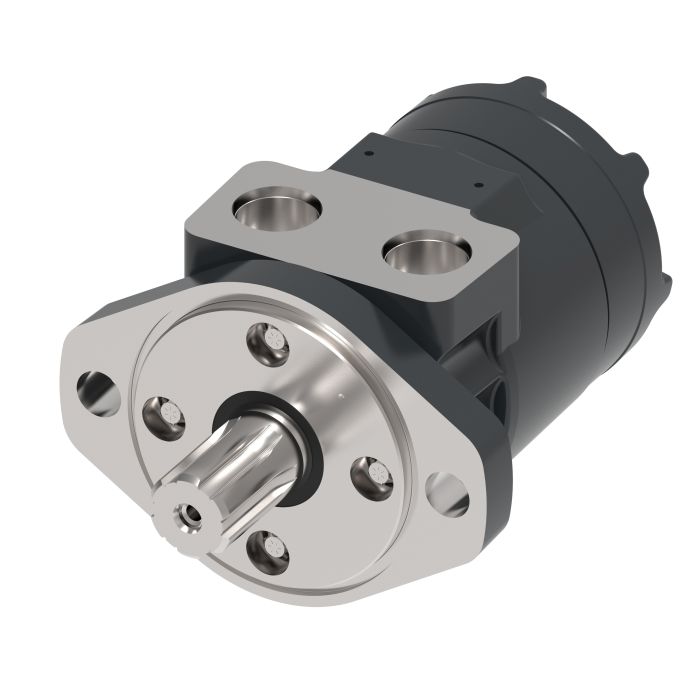

CHAR LYNN MT0149AA02AF2000000000A0A

Ask A Question

Description & Features

The CHAR LYNN MT0149AA02AF2000000000A0A is a versatile hydraulic motor suitable for a variety of applications including agricultural augers, harvesters, seeders, and railroad maintenance equipment. Featuring a compact yet powerful design, this motor is constructed from durable ductile iron for long-lasting performance.

This Char-Lynn T Series Spool Geroler offers extended bearing life and an increased shaft seal. It handles a flow rate of 57 liters per minute and provides a torque rating of 410 newton meters.

SKU: 158-1453

Supplier Part Number (MPN): 158-1453-001

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Check Valve Function
Without Check Valve Function
Color
Black
Design Code
1
Dimensions
7.71 in L x 3.87 in W x 5.27 in H
Drain Port Dimension
1/4 in
Frame Size
245
Housing Material
Iron
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Aligned
Port Type
BSP
Seal Material
NBR
Segment Code
B
Series
T Series
Shaft Size
1 in Dia
Shaft Type
Splined
Valve Type
Spool

Product Questions & Answers (1)

Question by: Jerry K on Apr 27, 2025, 3:31 PM
Reckon this motor could handle runnin' an auger all day long during harvest? Just wanna make sure it's up to the task.
Answer by: Customer Support on Apr 29, 2025, 12:36 PM
Use-case-first: Specifically for agricultural augers, harvesters, and seeders, this Char-Lynn motor's durable ductile iron construction and extended bearing life make it well-suited for continuous operation in those kinds of demanding applications.
