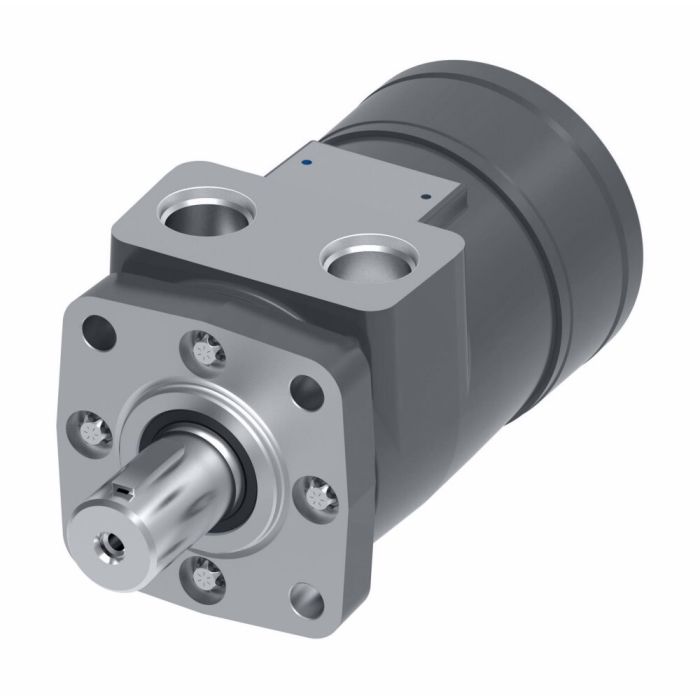

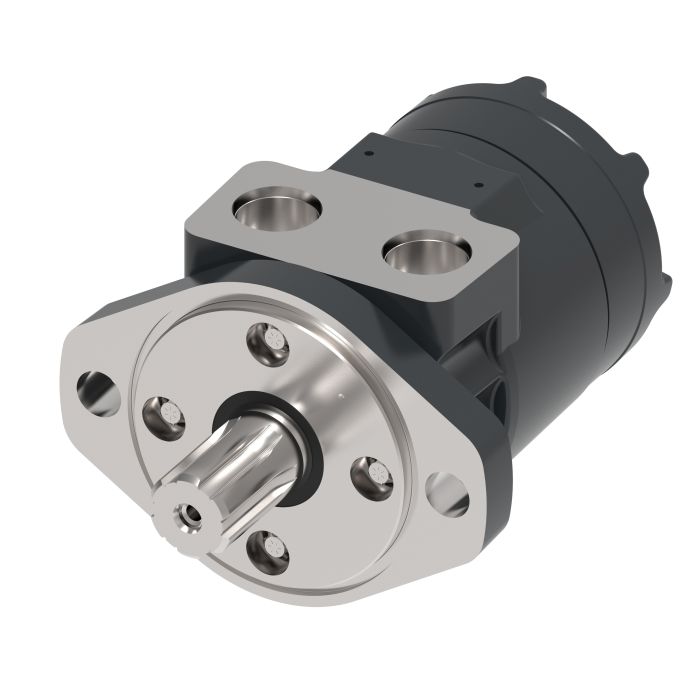

main product photo

CHAR LYNN MT0040AA24AF2000000000A0A

Ask A Question

Description & Features

Designed for demanding agricultural and rail maintenance applications, the Char-Lynn MT0040AA24AF2000000000A0A is a T Series Spool Geroler motor from Danfoss/Eaton's Char-Lynn line. Built from ductile iron, it delivers a torque rating of 138 Nm with a maximum flow rate of 57 litres per minute, making it well suited for agricultural augers, harvesters, seeders, and railroad maintenance equipment.

The motor features a compact form factor relative to its output, with extended bearing life and an increased shaft seal capacity that supports reliable performance in high-cycle or high-load environments. At 5.27 inches wide, the unit fits within space-constrained installations without sacrificing output capability.

SKU: 158-1606

Supplier Part Number (MPN): 158-1606-001

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Check Valve Function
Without Check Valve Function
Color
Black
Design Code
1
Dimensions
6.404 in L x 5.27 in W x 3.87 in H
Drain Port Dimension
1/4 in
Frame Size
65
Housing Material
Iron
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Aligned
Port Type
BSP
Seal Material
NBR
Segment Code
C
Series
T Series
Shaft Size
25 mm Dia
Shaft Type
Straight Square Keyed
Valve Type
Spool

Product Questions & Answers (1)

Question by: Lance T on Jul 9, 2025, 9:23 PM
How much torque can I expect from this motor when I'm running it at its max flow rate?
Answer by: Customer Support on Jul 11, 2025, 2:19 PM
At the maximum flow rate of 57 liters per minute, this Char-Lynn motor is rated to deliver 138 Newton meters of torque.
