CHAR LYNN MT0040BA01AA1000000000A0A

Ask A Question

Description & Features

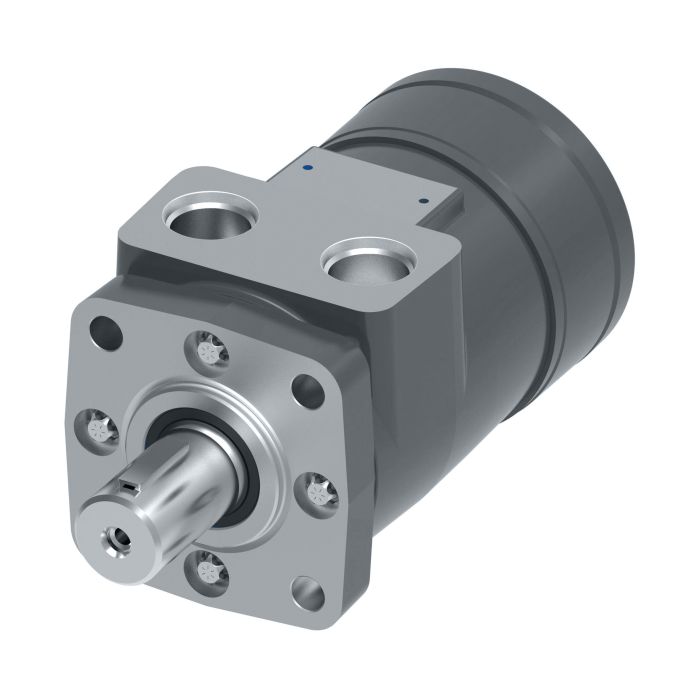

Designed for challenging environments, the Char-Lynn MT0040BA01AA1000000000A0A hydraulic motor is an ideal solution for agricultural and railroad maintenance equipment. Its compact yet powerful build is crafted from durable ductile iron, ensuring longevity and reliability. The motor features an extended bearing life and an increased shaft seal, making it highly efficient for continuous operation in demanding applications such as agricultural augers, harvesters, and seeders.

With a flow rate of 57 litres per minute and a torque rating of 138 newton meters, this low-speed gerotor/geroler motor delivers consistent performance. The Char-Lynn MT0040BA01AA1000000000A0A is designed to meet the needs of industrial applications, providing robust performance and extended service life. Its compact design allows for easy integration into existing systems, making it a versatile choice for various industrial needs.

SKU: 158-1638

Supplier Part Number (MPN): 158-1638-001

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Check Valve Function
Without Check Valve Function
Color
Black
Design Code
1
Dimensions
6.42 in L x 3.38 in W x 3.46 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
65
Housing Material
Iron
Mounting Type
4-Bolt Square Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Aligned
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Segment Code
B
Series
T Series
Shaft Size
1 in Dia
Shaft Type
Straight Woodruff Keyed
Valve Type
Spool

Product Questions & Answers (1)

Question by: Wayne M on Apr 16, 2025, 9:07 AM
What's the deal with this motor's construction? It looks pretty solid.
Answer by: Customer Support on Apr 17, 2025, 8:08 PM
Constructed from durable ductile iron, this Char-Lynn motor is designed to hold up in tough conditions.
