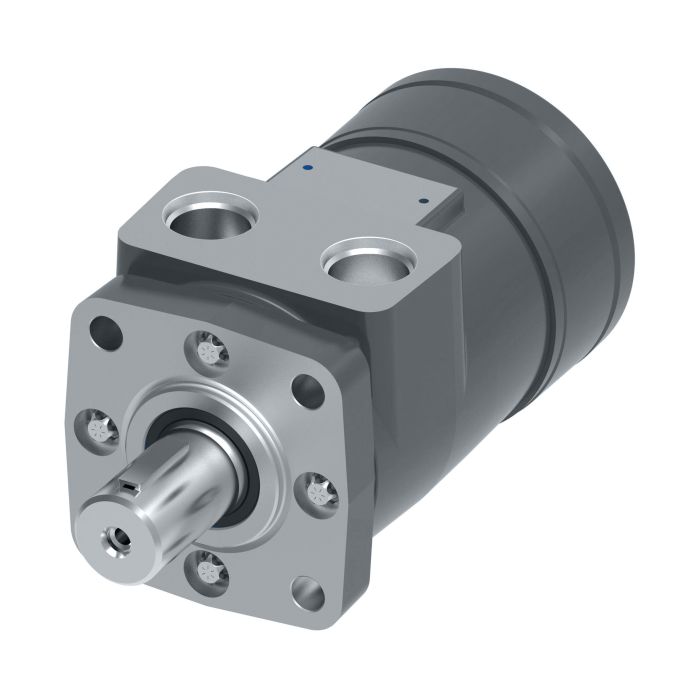

main product photo

CHAR LYNN MT0080BA01AA1000000000A0A

Ask A Question

Description & Features

Ideal for agricultural equipment like augers, harvesters, and seeders, as well as railroad maintenance machinery, the CHAR LYNN MT0080BA01AA1000000000A0A provides reliable performance in demanding applications. Constructed from durable ductile iron, this low-speed Geroler motor offers extended bearing life, ensuring longevity and efficiency.

With a compact yet powerful design, it supports a flow rate of up to 57 liters per minute and delivers a torque rating of 251 Newton meters. An increased shaft seal enhances its durability, making it suitable for various industrial environments. Part of the Char-Lynn T Series, this motor is recognized for its robust build and reliable performance.

SKU: 158-1640

Supplier Part Number (MPN): 158-1640-001

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Check Valve Function
Without Check Valve Function
Color
Black
Design Code
1
Dimensions
6.89 in L x 3.38 in W x 3.46 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
130
Housing Material
Iron
Mounting Type
4-Bolt Square Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Aligned
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Series
T Series
Shaft Size
1 in Dia
Shaft Type
Straight Woodruff Keyed
Valve Type
Spool

Product Questions & Answers (1)

Question by: Gary H on Nov 4, 2025, 2:38 PM
How tough is this thing built, really? I see it says "ductile iron" but what does that mean for how long it'll last?
Answer by: Customer Support on Nov 6, 2025, 1:52 PM
Built from ductile iron, this Char-Lynn motor is made to hold up. The extended bearing life and increased shaft seal add to its durability in demanding industrial and agricultural jobs.
