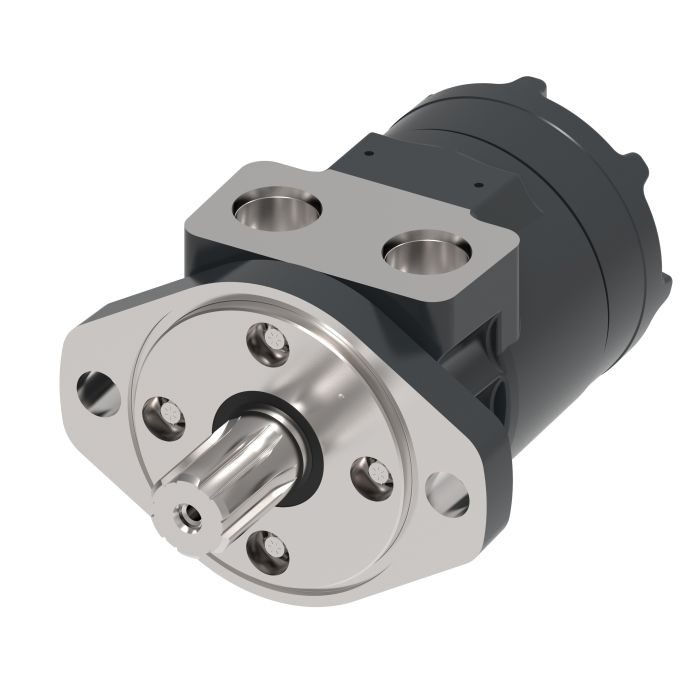

CHAR LYNN MT0149AA01AA1000000000A0A

Ask A Question

Description & Features

This Char-Lynn MT Series spool valve geroler is constructed from durable ductile iron.

The CHAR LYNN MT0149AA01AA1000000000A0A offers compact yet powerful performance and extended bearing life. Its increased shaft seal enhances durability, making it suitable for demanding applications such as agricultural augers, harvesters, seeders, and railroad maintenance equipment. It offers a torque rating of 410 newton meters and a flow rate of 57 liters per minute.

SKU: 158-2038

Supplier Part Number (MPN): 158-2038-001

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Check Valve Function
Without Check Valve Function
Color
Black
Design Code
1
Dimensions
7.71 in L x 5.27 in W x 3.87 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
245
Housing Material
Iron
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Aligned
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Series
T Series
Shaft Size
1 in Dia
Shaft Type
Straight Woodruff Keyed
Valve Type
Spool

Product Questions & Answers (1)

Question by: Roger C on Sep 28, 2025, 11:11 AM
Wondering if this Char-Lynn MT series motor would be a good fit for a grain auger on my farm equipment?
Answer by: Customer Support on Sep 30, 2025, 10:26 AM
This Char-Lynn geroler motor is well-suited for agricultural augers, among other applications like harvesters and seeders.
