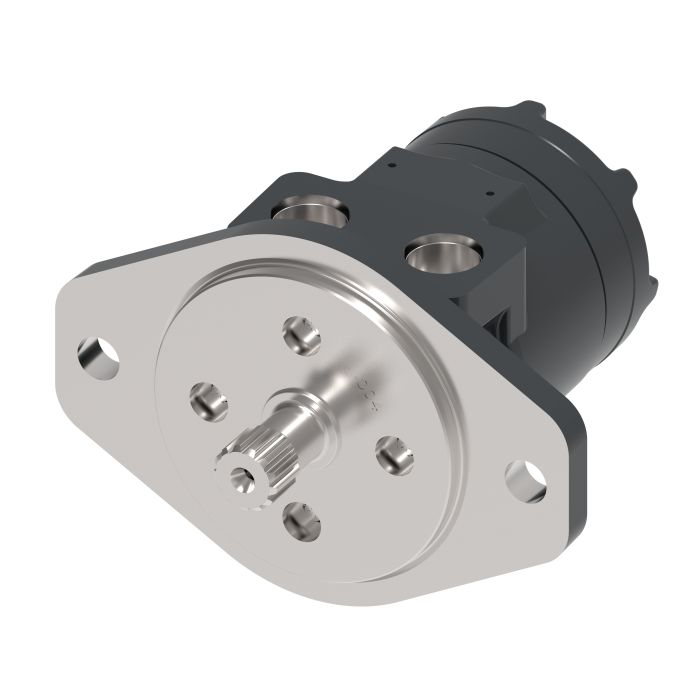

main product photo

CHAR LYNN MT0040DD16AA1000000000A0A

Ask A Question

Description & Features

The Char-Lynn MT0040DD16AA1000000000A0A is a T Series Spool Geroler known for its compact, yet powerful design and extended bearing life. This Eaton/Danfoss hydraulic motor ensures increased shaft seal performance and reliability in demanding applications.

Constructed from durable cast iron, this gerotor motor is suitable for agricultural augers, harvesters, seeders, and railroad maintenance equipment. With a flow rate of 57 litres per minute and a torque rating of 138 newton metres, it provides reliable power for low-speed applications.

SKU: 158-2706

Supplier Part Number (MPN): 158-2706-001

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Check Valve Function
Without Check Valve Function
Color
Black
Design Code
1
Dimensions
6.295 in L x 3.87 in W x 5.27 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
65
Housing Material
Iron
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Aligned
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Segment Code
B
Series
T Series
Shaft Size
7/8 in Dia
Shaft Type
Splined
Valve Type
Spool

Product Questions & Answers (1)

Question by: Roger J on Oct 19, 2025, 9:13 AM
Could this motor handle bein' run pretty steady all day long, like six or seven hours at a stretch?
Answer by: Customer Support on Oct 20, 2025, 2:28 PM
Designed for reliability in demanding scenarios, this Char-Lynn geroler motor is well-suited for continuous operation within its specified flow rate and torque limits. Just keep an eye on temperature during extended use.
