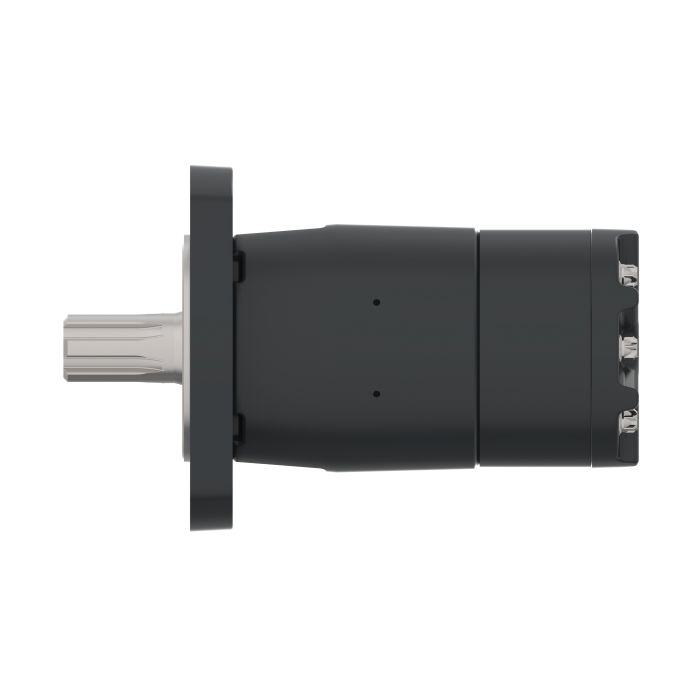

CHAR LYNN MT0149EA02AD2000000000A0A

Ask A Question

Description & Features

Designed for demanding agricultural and rail maintenance applications, the Char-Lynn MT0149EA02AD2000000000A0A is a T Series Spool Geroler motor built to deliver reliable low-speed, high-torque performance. Common uses include agricultural augers, harvesters, seeders, and railroad maintenance equipment, environments where sustained torque output and mechanical durability are critical.

Constructed from ductile iron, this motor is rated at 410 Nm of torque with a maximum flow rate of 57 litres per minute. The design incorporates extended bearing life and an increased shaft seal capacity, making it well-suited to continuous-duty cycles. Its compact form factor allows for installation in space-constrained drive configurations without sacrificing output capacity.

SKU: 158-3054

Supplier Part Number (MPN): 158-3054-001

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Check Valve Function
Without Check Valve Function
Color
Black
Design Code
1
Dimensions
7.71 in L x 3.46 in W x 3.38 in H
Drain Port Dimension
1/4 in
Frame Size
245
Housing Material
Iron
Mounting Type
4-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Aligned
Port Type
Manifold
Seal Material
NBR
Series
T Series
Shaft Size
1 in Dia
Shaft Type
Splined
Valve Type
Spool

Product Questions & Answers (1)

Question by: Rick H on Feb 24, 2026, 9:25 AM
What kind of upkeep does this motor need for it to keep running smooth?
Answer by: Customer Support on Feb 25, 2026, 6:39 PM
Extended bearing life and an increased shaft seal are part of the design, which should help with continuous use. You'll want to keep an eye on those seals, as you would with any hydraulic motor in this kind of application.
