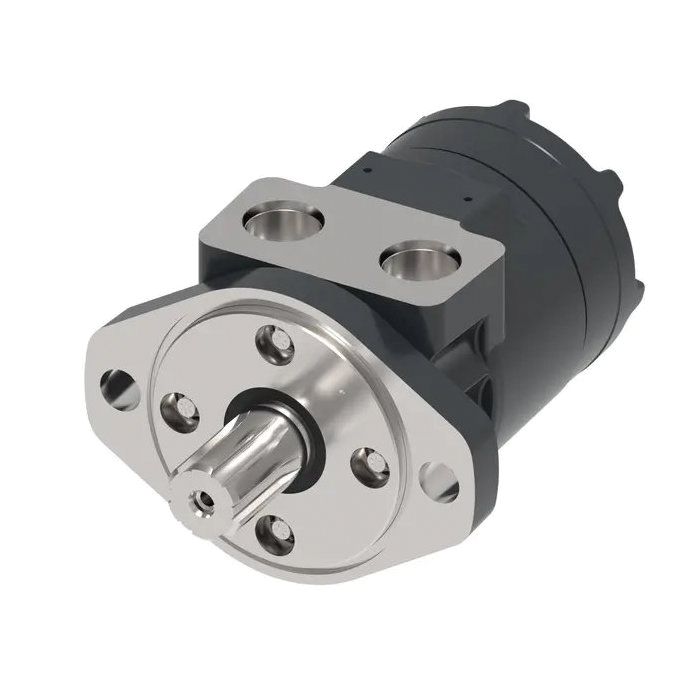

CHAR LYNN MT0119AA24AA1000000000A0A

Ask A Question

Description & Features

The CHAR LYNN MT0119AA24AA1000000000A0A is a T Series spool valve geroler. Constructed of ductile iron, this Char-Lynn motor offers a compact yet powerful design.

This geroler motor excels in agricultural applications such as augers, harvesters, and seeders, as well as railroad maintenance equipment. Features include extended bearing life and an improved shaft seal. It delivers a torque rating of 359 newton metres and a flow rate of 57 litres per minute.

SKU: 158-3209

Supplier Part Number (MPN): 158-3209-001

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Check Valve Function
Without Check Valve Function
Color
Black
Design Code
1
Dimensions
7.334 in L x 5.27 in W x 3.87 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
195
Housing Material
Iron
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Aligned
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Segment Code
C
Series
T Series
Shaft Size
25 mm Dia
Shaft Type
Straight Square Keyed
Valve Type
Spool

Product Questions & Answers (1)

Question by: Ray B on Sep 13, 2025, 12:24 PM
Can this run constantly, like eight hours a day, without burning out?
Answer by: Customer Support on Sep 15, 2025, 7:44 AM
This Char-Lynn geroler motor features extended bearing life, which makes it suitable for applications requiring continuous operation.
