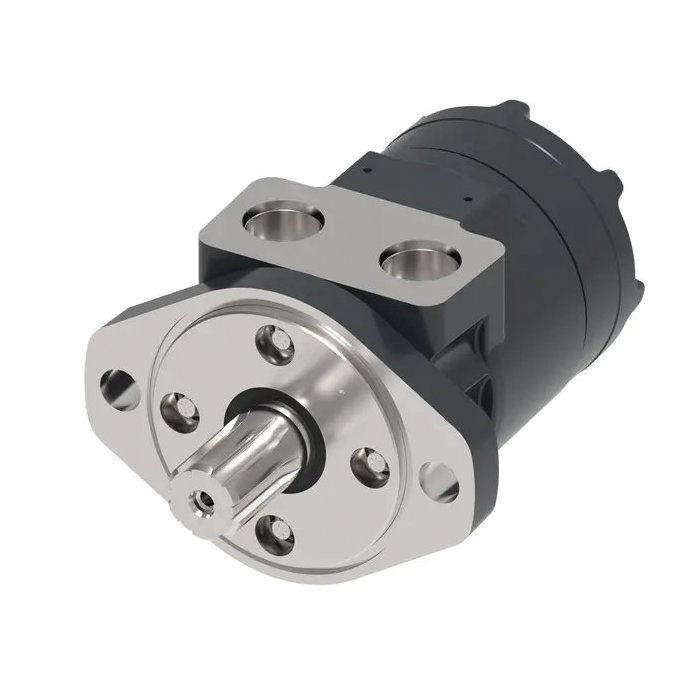

CHAR LYNN MT0049AA01AA00000E0000A0A

Ask A Question

Description & Features

The CHAR LYNN MT0049AA01AA00000E0000A0A is a Char-Lynn T Series spool geroler known for its compact design and powerful performance. Constructed from durable cast iron, this geroler is designed to provide extended bearing life and features an increased shaft seal for reliable use in demanding environments.

This low-speed gerotor/geroler motor is suitable for various applications, including agricultural augers, harvesters, seeders, and railroad maintenance equipment. It offers a torque rating of 174 newton metres and a flow rate of 45 litres per minute.

SKU: 158-3276

Supplier Part Number (MPN): 158-3276-001

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Check Valve Function
Without Check Valve Function
Color
Black
Design Code
1
Dimensions
6.53 in L x 3.87 in W x 5.27 in H
Frame Size
80
Housing Material
Iron
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Aligned
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Segment Code
B
Series
T Series
Shaft Size
1 in Dia
Shaft Type
Straight Woodruff Keyed
Valve Type
Spool

Product Questions & Answers (1)

Question by: Roy C on Apr 9, 2025, 11:01 AM
I'm looking at using this on some older farm equipment, would it be okay for that kinda thing?
Answer by: Customer Support on Apr 11, 2025, 6:19 AM
This Char-Lynn T Series motor is well-suited for agricultural applications like augers, harvesters, and seeders.
