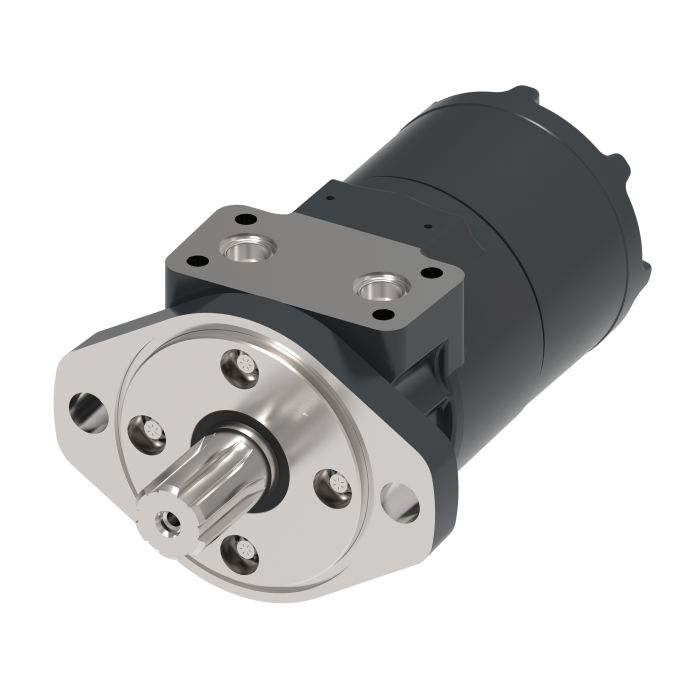

CHAR LYNN MT0187MA39AD2000000000A0A

Ask A Question

Description & Features

Designed for agricultural machinery and railroad maintenance equipment, the CHAR LYNN MT0187MA39AD2000000000A0A is a robust hydraulic solution featuring a compact yet powerful design. Built with cast iron for enhanced durability, this low-speed geroler motor delivers exceptional performance with a torque rating of 441 newton meters. It is engineered to handle a flow rate of up to 57 liters per minute, ensuring efficient operation in demanding environments.

The motor's extended bearing life and increased shaft seal protect against wear and contamination, making it an ideal choice for applications such as agricultural augers, harvesters, and seeders. The Char-Lynn T Series Spool Geroler is a testament to reliable hydraulic engineering, providing the strength and endurance needed for heavy-duty industrial tasks.

SKU: 158-3368

Supplier Part Number (MPN): 158-3368-001

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Check Valve Function
Without Check Valve Function
Color
Black
Design Code
1
Dimensions
8.16 in L x 3.87 in W x 5.27 in H
Drain Port Dimension
1/4 in
Frame Size
305
Housing Material
Iron
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Aligned
Port Type
Manifold
Seal Material
NBR
Segment Code
B
Series
T Series
Shaft Size
25 mm Dia
Shaft Type
Straight Rectangular Keyed
Valve Type
Spool

Product Questions & Answers (1)

Question by: Chad A on Feb 12, 2026, 6:13 AM
Will this motor work on my John Deere 7720 combine head?
Answer by: Customer Support on Feb 13, 2026, 8:49 PM
Use-case-first. For agricultural applications like combine heads, this Char-Lynn geroler motor is well-suited; it's commonly used on augers, harvesters, and seeders.
