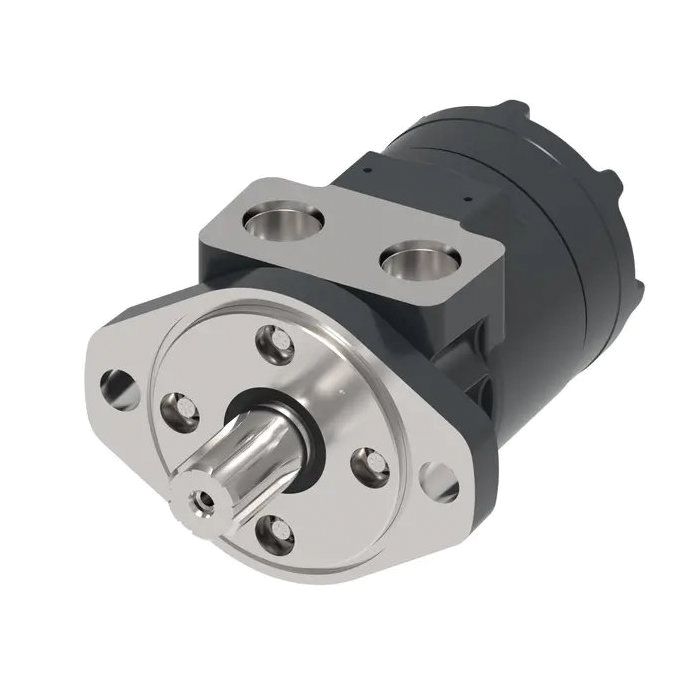

CHAR LYNN MT0080AA24AA0000000000A0A

Ask A Question

Description & Features

Designed for demanding agricultural and rail maintenance applications, the Char-Lynn MT0080AA24AA0000000000A0A is a T Series Spool Geroler motor built for reliable low-speed, high-torque performance. Constructed from ductile iron, it delivers a torque rating of 251 Nm with a flow rate capacity of 57 litres per minute, making it well suited for use in agricultural augers, harvesters, seeders, and railroad maintenance equipment.

The motor features an extended bearing life design alongside an increased shaft seal capacity, supporting durability under sustained load conditions. Its compact form factor allows for flexible installation in space-constrained equipment configurations without sacrificing output performance.

SKU: 158-3459

Supplier Part Number (MPN): 158-3459-001

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Check Valve Function
Without Check Valve Function
Color
Black
Design Code
1
Dimensions
6.874 in L x 5.27 in W x 3.87 in H
Frame Size
130
Housing Material
Iron
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Aligned
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Segment Code
C
Series
T Series
Shaft Size
25 mm Dia
Shaft Type
Straight Square Keyed
Valve Type
Spool

Product Questions & Answers (1)

Question by: Keith W on Aug 23, 2025, 4:51 PM
Reckon this'll hold up okay on a grain auger running pretty much non-stop during harvest?
Answer by: Customer Support on Aug 25, 2025, 6:56 AM
Designed with demanding agricultural applications in mind, this Char-Lynn motor uses durable ductile iron construction and features extended bearing life for reliable performance under sustained loads.
