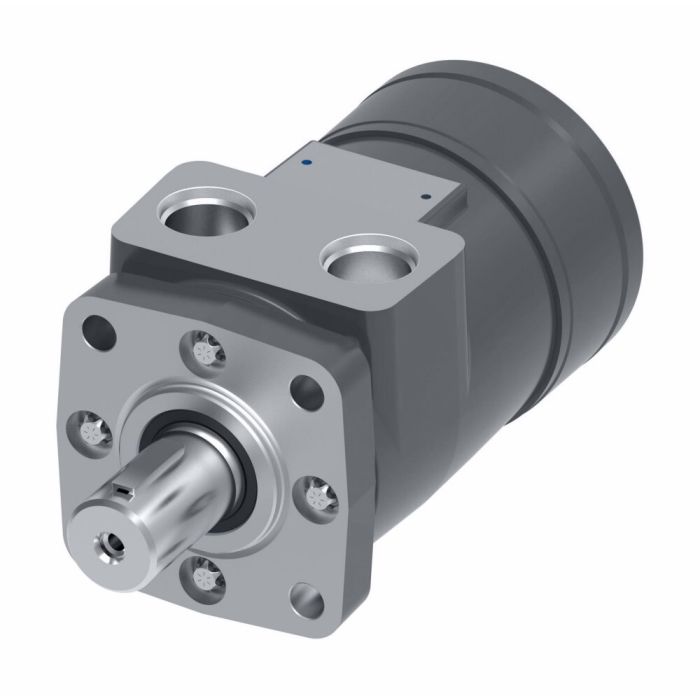

main product photo

CHAR LYNN MT0096AA02AFA000700000A0A

Ask A Question

Description & Features

Designed for demanding mobile applications, the Char-Lynn MT0096AA02AFA000700000A0A is a T Series Spool Geroler motor from Danfoss/Eaton built for agricultural and railroad maintenance equipment. Typical applications include agricultural augers, harvesters, and seeders, equipment that requires reliable low-speed, high-torque output in compact form factors.

Constructed from ductile iron, this motor delivers a torque rating of 219.78 Nm and supports flow rates up to 57 litres per minute. The spool-type Geroler design provides extended bearing life and an increased shaft seal capacity, making it well suited to environments where durability and service life are priorities. At 5.27 inches wide, the motor's compact footprint allows integration into tight machine assemblies without sacrificing output.

SKU: 158-3473

Supplier Part Number (MPN): 158-3473-001

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Check Valve Function
With Check Valve Function
Color
Black
Design Code
1
Dimensions
7.09 in L x 5.27 in W x 3.87 in H
Frame Size
160
Housing Material
Iron
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Aligned
Port Type
BSP
Seal Material
HNBR
Segment Code
B
Series
T Series
Shaft Size
1 in Dia
Shaft Type
Splined
Valve Type
Spool

Product Questions & Answers (1)

Question by: Joyce G on Nov 1, 2025, 7:36 PM
Wondering what kind of equipment this motor is typically bolted onto?
Answer by: Customer Support on Nov 3, 2025, 6:16 PM
It's designed for mobile applications like agricultural augers, harvesters, and seeders. Railroad maintenance equipment is another common use.
