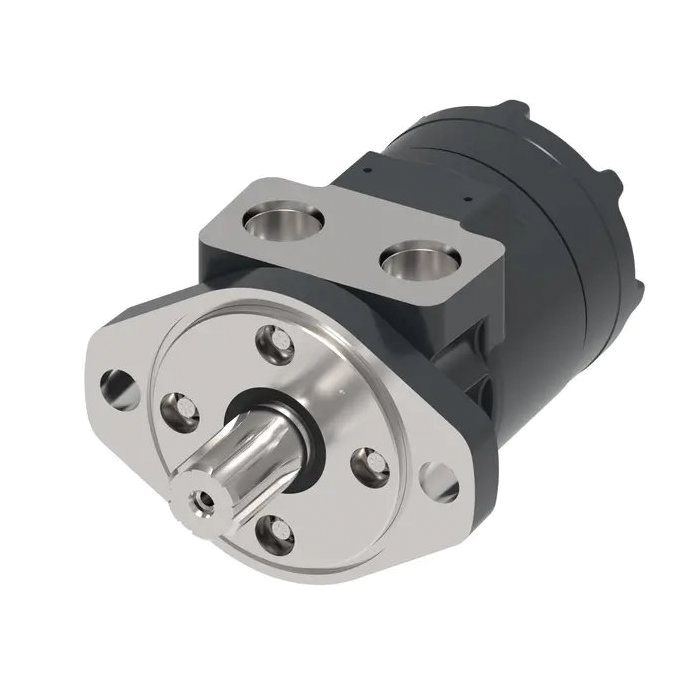

CHAR LYNN MT0119BA18AA1000000000A0A

Ask A Question

Description & Features

Designed for demanding environments, the Char-Lynn MT0119BA18AA1000000000A0A motor excels in agricultural and railroad applications. Its compact yet powerful design features a durable ductile iron construction, ensuring long-lasting performance. With an extended bearing life and increased shaft seal, this low-speed geroler motor is optimized for reliability.

Capable of handling a flow rate of 57 liters per minute, this motor is suitable for use in agricultural augers, harvesters, and seeders. It boasts a torque rating of 359 newton meters, providing the necessary power for efficient operation in heavy-duty equipment.

SKU: 158-3584

Supplier Part Number (MPN): 158-3584-001

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Check Valve Function
Without Check Valve Function
Color
Black
Design Code
1
Dimensions
7.35 in L x 3.38 in W x 3.46 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
195
Housing Material
Iron
Mounting Type
4-Bolt Square Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Aligned
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Series
T Series
Shaft Size
1 in Dia
Shaft Type
Tapered Woodruff Keyed
Valve Type
Spool

Product Questions & Answers (1)

Question by: Harvey C on Jun 27, 2025, 5:42 PM
Will this motor hold up on my farm equipment? I need something that can take a beating.
Answer by: Customer Support on Jun 29, 2025, 6:14 AM
Constructed from durable ductile iron, this Char-Lynn motor is designed for demanding agricultural applications like augers, harvesters, and seeders, so it should provide reliable service.
