CHAR LYNN MT0096AA02AA00000E0000A0A

Ask A Question

Description & Features

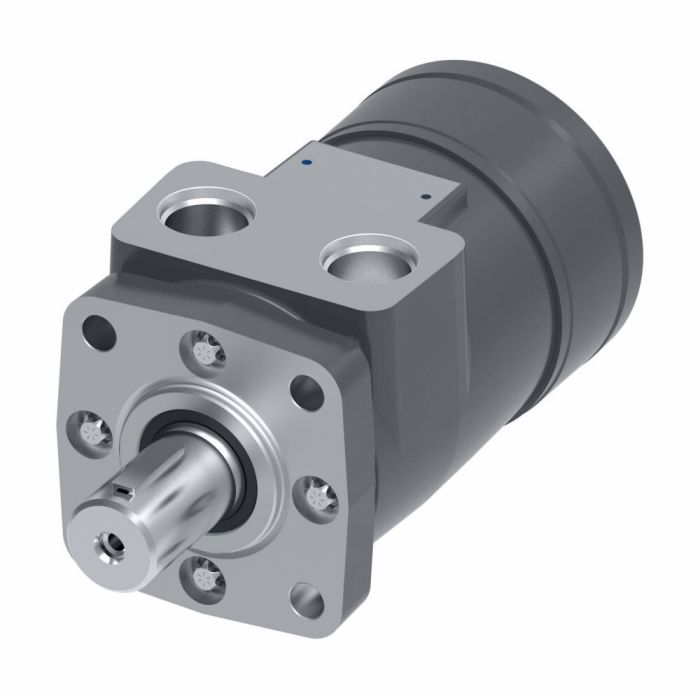

This Char-Lynn T Series spool geroler is a low-speed gerotor/geroler type motor. Made from durable ductile iron, the CHAR LYNN MT0096AA02AA00000E0000A0A motor delivers a torque rating of 297 newton metres and a flow rate of 57 litres per minute.

With compact yet powerful design, this Char-Lynn motor offers extended bearing life and an increased shaft seal. It is designed for use in agricultural augers, harvesters, seeders, and railroad maintenance equipment.

SKU: 158-3653

Supplier Part Number (MPN): 158-3653-001

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Check Valve Function
Without Check Valve Function
Color
Black
Design Code
1
Dimensions
7.09 in L x 3.87 in W x 5.27 in H
Frame Size
160
Housing Material
Iron
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Aligned
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Series
T Series
Shaft Size
1 in Dia
Shaft Type
Splined
Valve Type
Spool

Product Questions & Answers (1)

Question by: Dustin J on Sep 24, 2025, 6:24 PM
Will this Char-Lynn motor work for a harvester?
Answer by: Customer Support on Sep 26, 2025, 4:01 PM
This Char-Lynn T Series spool geroler motor is designed for use in agricultural augers, harvesters, seeders, and railroad maintenance equipment.
